Instrument Panel Upper Section: Removal

All vehicles

1. Remove the instrument panel. Refer to: Instrument Panel .
2. NOTE: Upper instrument panel storage tray with speaker shown, others similar.

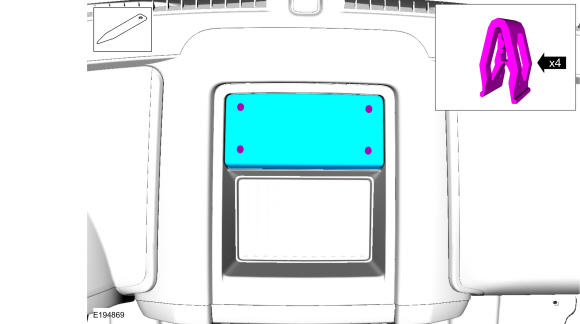

   If equipped, release the clips and remove the instrument panel speaker grille. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

3. NOTE: Upper instrument panel storage tray with speaker shown, others similar.

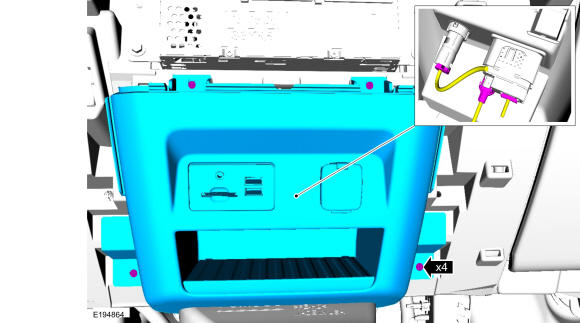

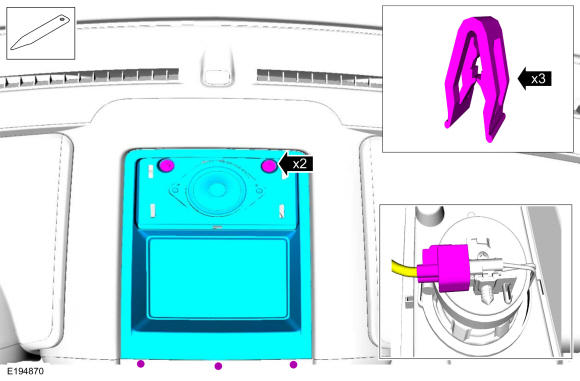

   Remove the bolts, release the clips and remove upper instrument panel storage tray. Use the General Equipment: Interior Trim Remover

   Torque

   : 22 lb.in (2.5 Nm)

   Courtesy of FORD MOTOR COMPANY

4. NOTE: If equipped.

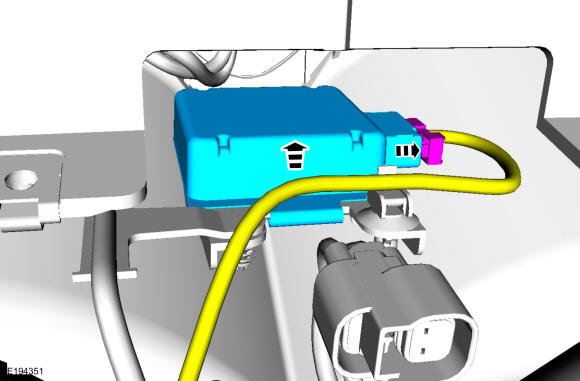

   Release the clip and remove the GPSM.

   • Disconnect the electrical connector.

   Courtesy of FORD MOTOR COMPANY

5. Remove the steering column shrouds. Refer to: Steering Column Shrouds .
6. NOTE: Push button start vehicle shown, all others similar.

   Lower the steering column opening panel.

   Courtesy of FORD MOTOR COMPANY

7. Disconnect the electrical connector(s).

   Courtesy of FORD MOTOR COMPANY

8. NOTE: Push button start vehicle shown, all others similar.

   Remove the screws and the steering column opening trim panel.

   Torque

   : 80 lb.in (9 Nm)

   Courtesy of FORD MOTOR COMPANY

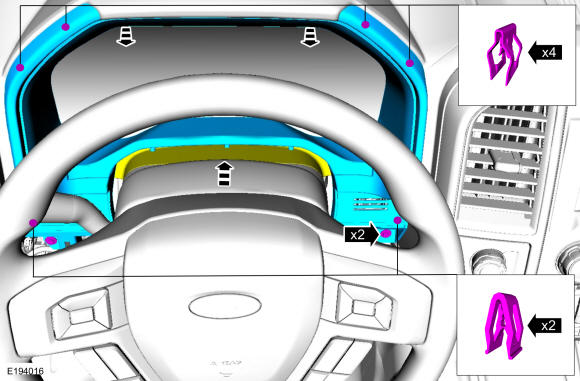

9. Remove the 2 bolts, release the clips and remove IPC trim panel.

   Torque

   : 22 lb.in (2.5 Nm)

   Courtesy of FORD MOTOR COMPANY

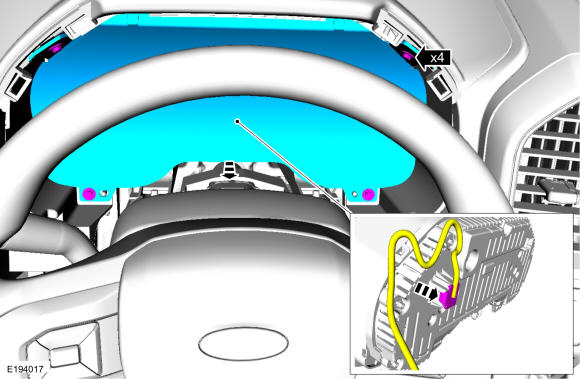

10. Remove the bolts and the IPC.
    • Disconnect the electrical connector.

      Torque

      : 21 lb.in (2.4 Nm)

    Courtesy of FORD MOTOR COMPANY

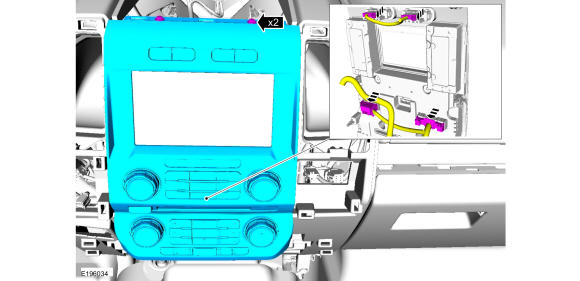

11. NOTE: FCIM with touchscreen shown. FCIM without touch screen similar.

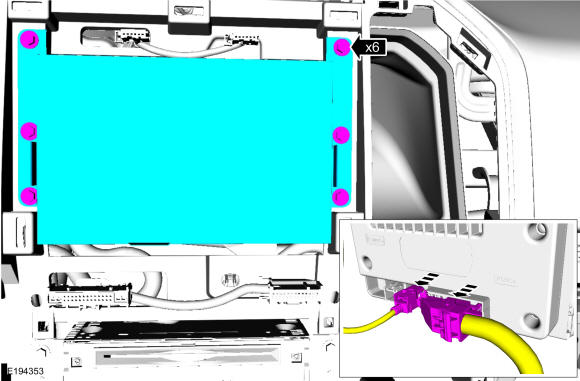

    Remove the bolts and the FCIM.

    • Disconnect the electrical connectors.

      Torque

      : 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

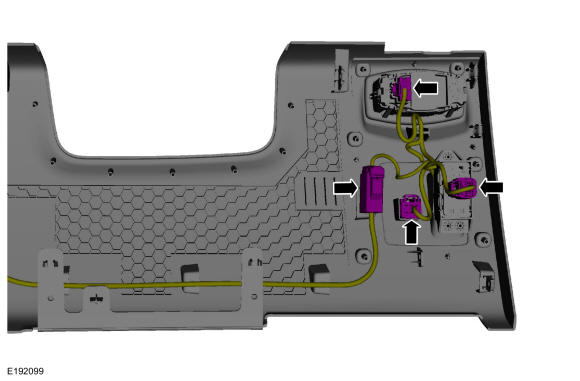

12. NOTE: Instrument panel center trim panel without floor console shown, with floor console similar.

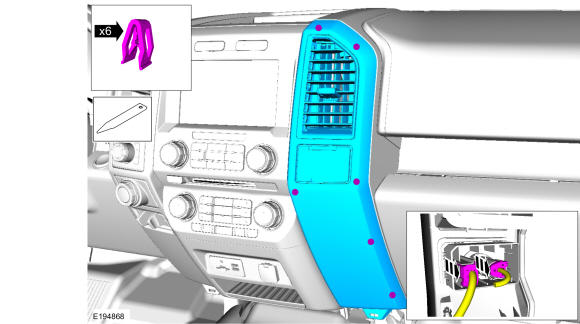

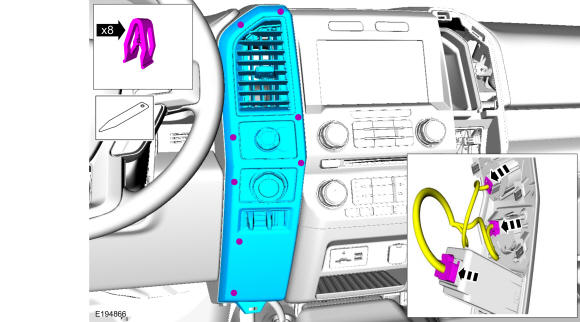

    Release the clips and remove the RH instrument panel center trim panel.

    • Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

13. NOTE: Instrument panel center trim panel without floor console shown, with floor console similar.

    Release the clips and remove the LH instrument panel center trim panel.

    • Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

    Vehicles without touchscreen

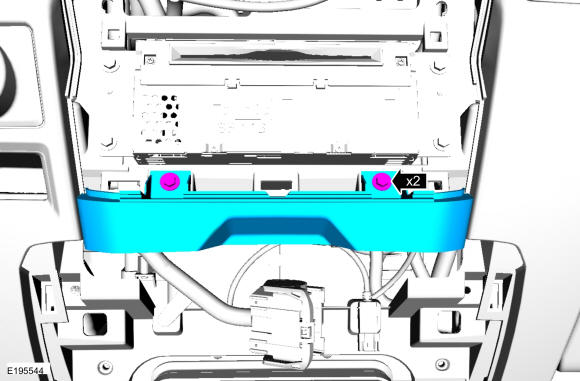

14. Remove the bolts and the FCDIM.
    • Disconnect the electrical connector.

      Torque

      : 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

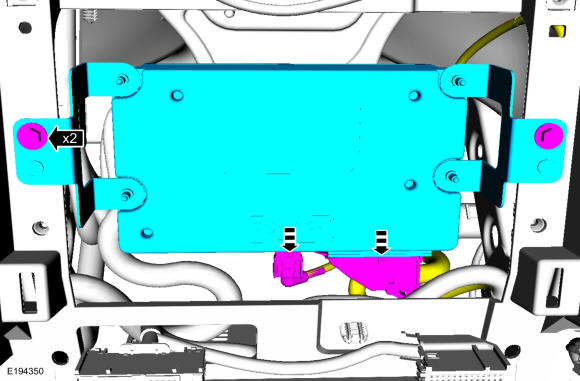

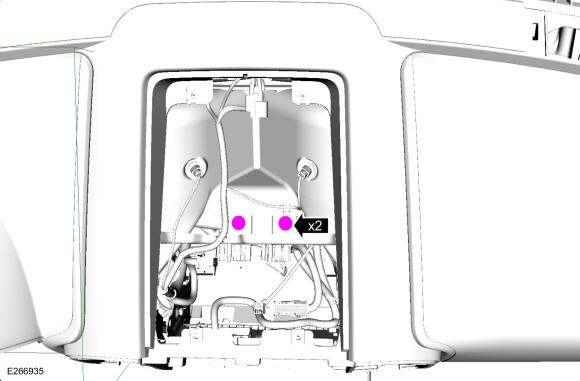

15. Remove the two bolts and the APIM.
    • Disconnect the electrical connectors.

      Torque

      : 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

    Vehicles with touchscreen

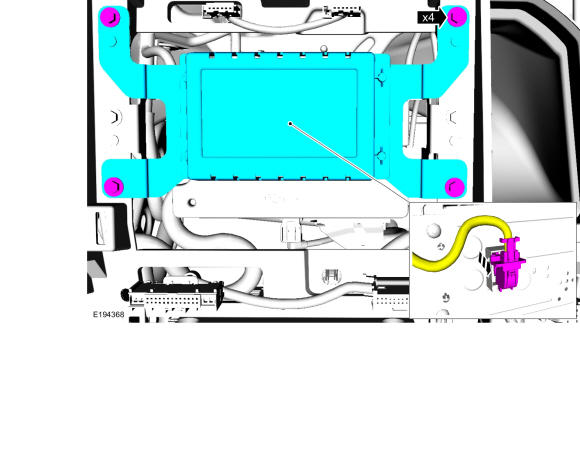

16. Remove the bolts and the FDIM.
    • Disconnect the electrical connectors.

      Torque

      : 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

17. Remove the nuts and the module.
    • Disconnect the electrical connector.

    Courtesy of FORD MOTOR COMPANY

    Vehicles without floor console

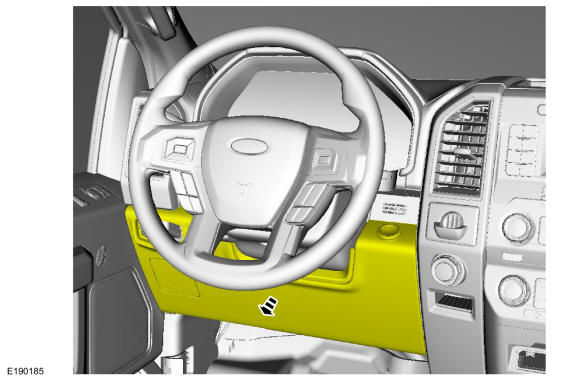

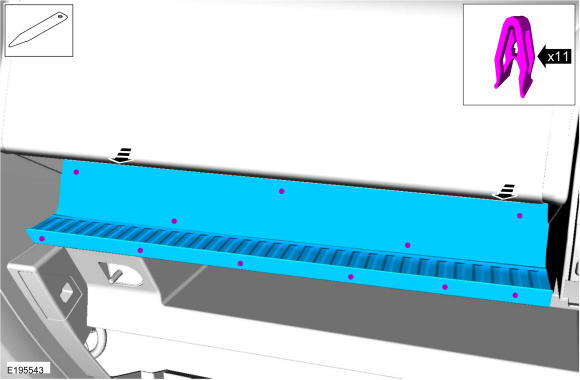

18. Remove bolts and the lower instrument panel finish panel.
    • Disconnect the electrical connectors.

      Torque

      : 48 lb.in (5.4 Nm)

    Courtesy of FORD MOTOR COMPANY

    Vehicles with floor console

19. Remove the bolts and the instrument panel lower finish panel.

    Torque

    : 48 lb.in (5.4 Nm)

    Courtesy of FORD MOTOR COMPANY

    All vehicles

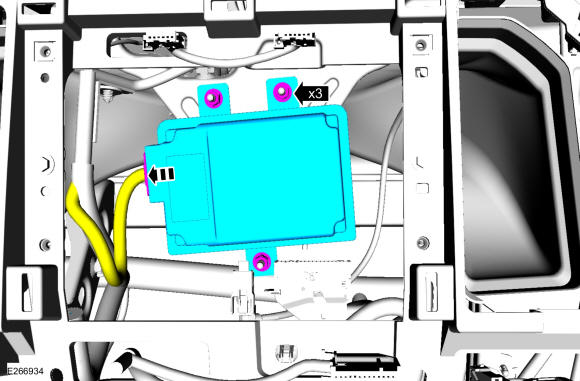

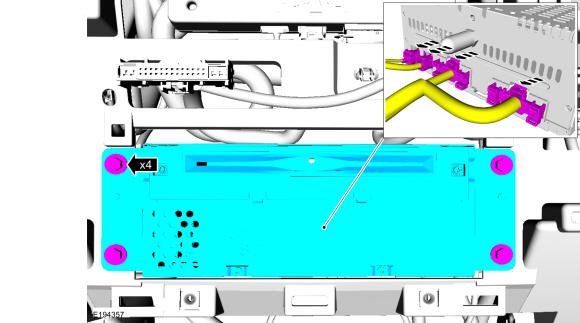

20. Remove the bolts and the ACM.
    • Disconnect the electrical connectors.

      Torque

      : 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

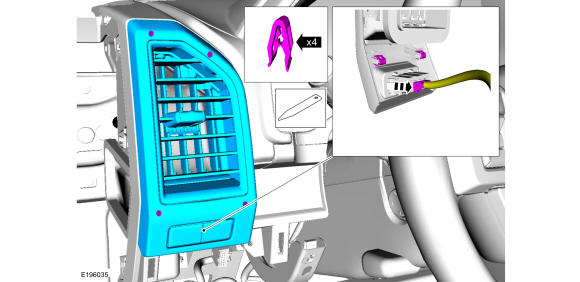

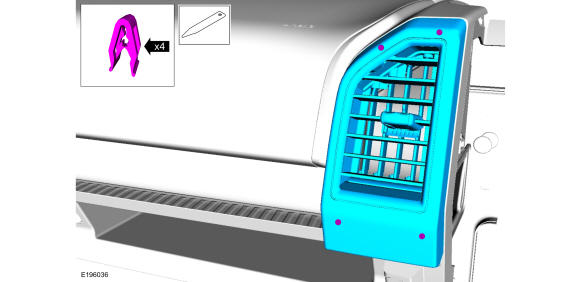

21. Release the clips and remove the RH register finish panel. Use the General Equipment: Interior Trim Remover

    Courtesy of FORD MOTOR COMPANY

22. Release the clips and remove the RH finish panel. Use the General Equipment: Interior Trim Remover

    Courtesy of FORD MOTOR COMPANY

23. NOTE: Vehicle with spot light shown, without spotlight similar.

    Release the clips and remove the LH register finish panel. Use the General Equipment: Interior Trim Remover

    Courtesy of FORD MOTOR COMPANY

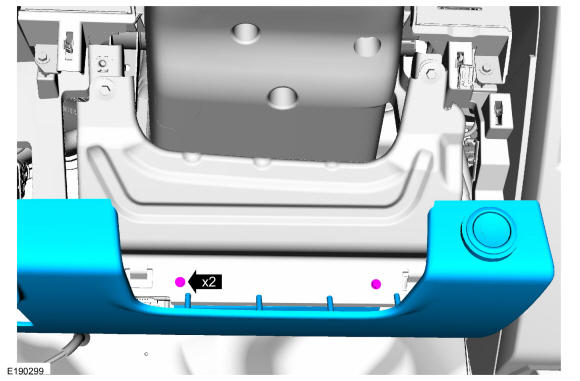

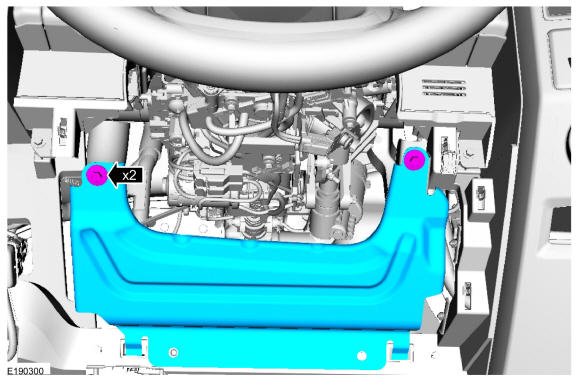

24. Remove the bolts and the steering column reinforcement panel.

    Torque

    : 59 lb.ft (80 Nm)

    Courtesy of FORD MOTOR COMPANY

25. WARNING: Do not reuse steering column nuts. This may result in fastener failure and steering column detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

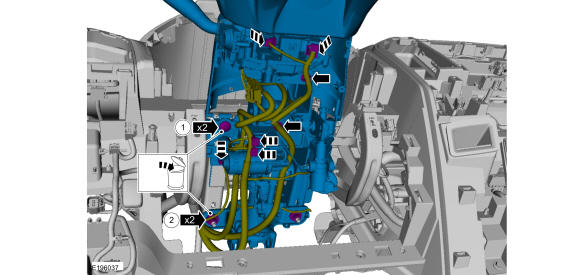

    Disconnect the electrical connectors, position aside the harness and remove the steering column.

    1. Remove and discard the bolts.

       Torque

       : 21 lb.ft (28 Nm)

    2. Remove and discard the nuts.

       Torque

       : 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

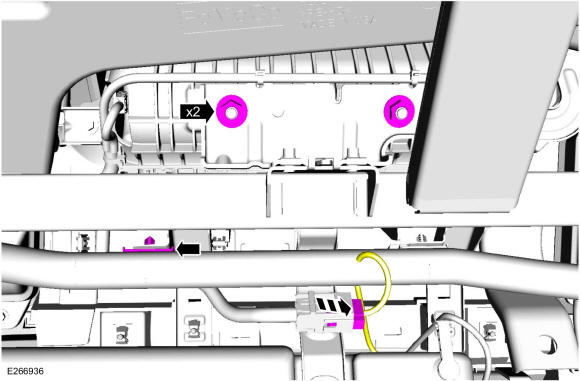

26. NOTE: The HVAC plenum may need to be positioned upward to access bolts.

    Remove the bolts.

    Torque

    : 49 lb.in (5.5 Nm)

    Courtesy of FORD MOTOR COMPANY

27. Remove the bolts
    • Disconnect the electrical connector and the harness retainer.

      Torque

      : 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

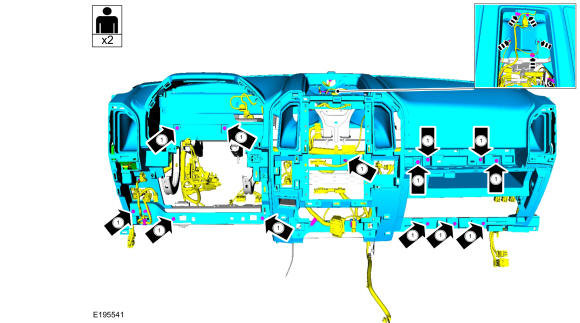

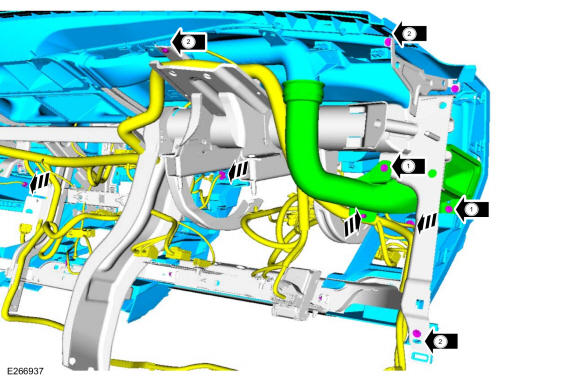

28. Disconnect the electrical connectors. release the harness retainers and position aside the electrical harness.
    1. Remove the bolts and the HVAC duct.

       Torque

       : 22 lb.in (2.5 Nm)

    2. Remove the bolts.

       Torque

       : 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

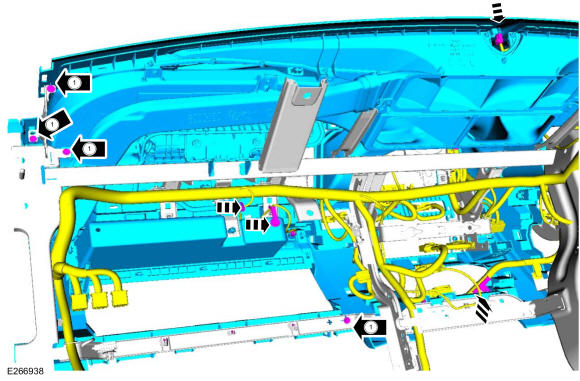

29. Disconnect the electrical connectors, release the harness retainers and position aside the electrical harness.
    • Remove the bolts.

      Torque

      : 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

30. Disconnect the electrical connectors. release the harness retainers and position aside the electrical harness.
    1. Remove the bolts.

       Torque

       : 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
