Glove compartment
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

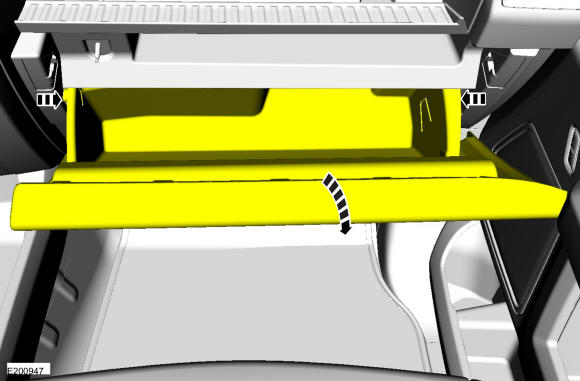

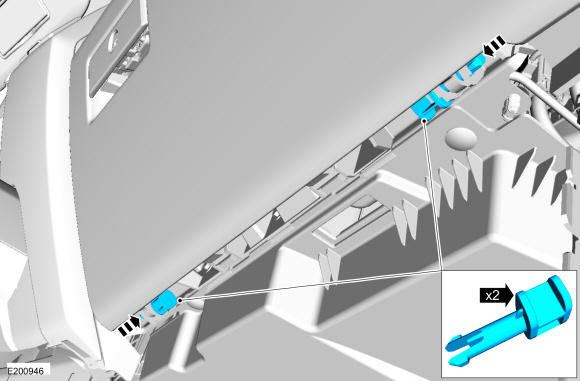

- Remove the glove compartment hinge pins.
- Open the glove compartment.

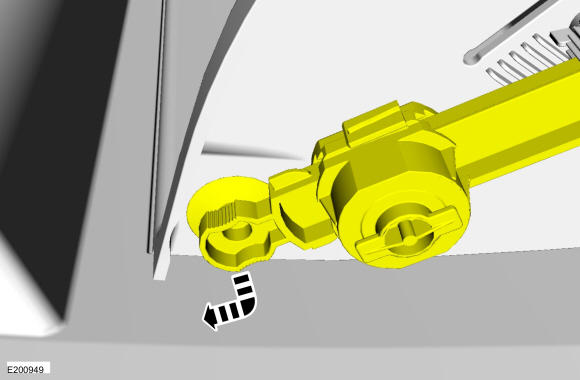

- Remove the glove compartment dampener from the glove compartment by pushing down and forward at the damper end.

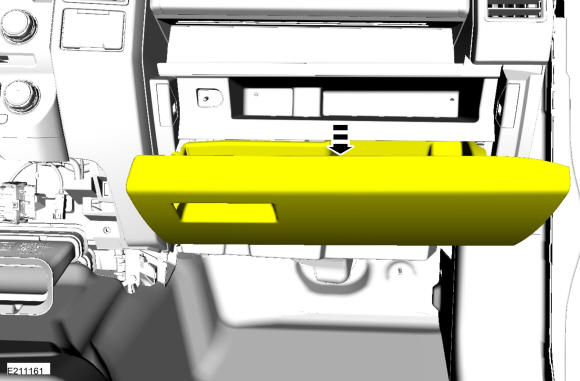

- Release glove compartment downstops and fully lower the glove compartment.
- Remove the glove compartment from the hinge line.
Glove compartment bin

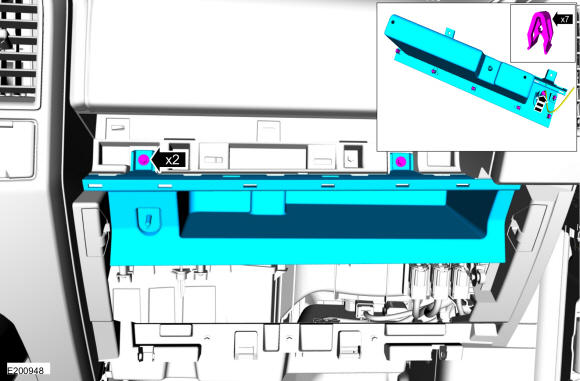

- Release the clips and remove the RH finish panel. Use the General Equipment: Interior Trim Remover

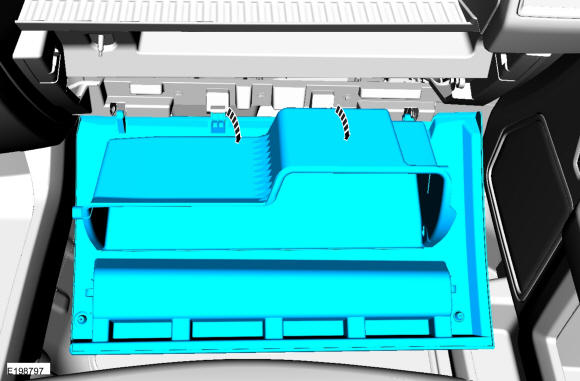

- Remove the bolts, release the clips and remove the glove compartment bin.
- Disconnect the electrical connector.
