Transfer Case Rear Seal: Installation
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

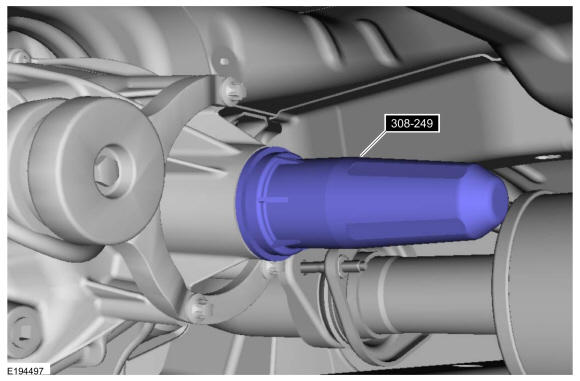

- Using the special tool, install the rear output shaft seal. Use Special Service Tool: 308-249 (T96T-7127-A) Installer, Input Shaft Oil Seal.
- Install the rear driveshaft. Refer to: Rear Driveshaft .
