3.0L Power Stroke Diesel
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

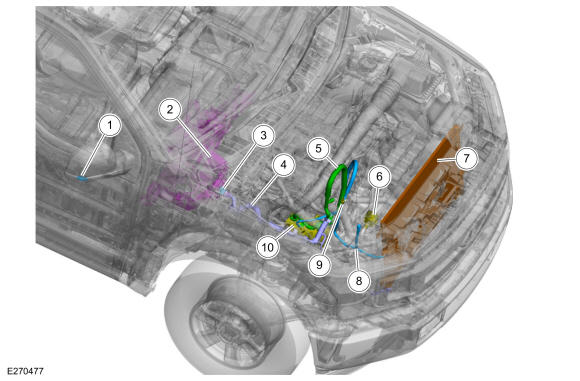

| Item | Description |
|---|---|
| 1 | Ambient Air Temperature Sensor |
| 2 | Climate Control Housing |
| 3 | Thermostatic Expansion Valve |
| 4 | Thermostatic Expansion Valve Manifold and Tube Assembly |
| 5 | A/C Compressor Inlet Line |
| 6 | Cabin Heater Coolant Pump |
| 7 | Condenser |
| 8 | A/C Compressor Outlet Line |
| 9 | A/C Pressure Transducer |
| 10 | A/C Compressor |
