Climate Control System - Vehicles With: Dual Automatic Temperature Control (DATC) - System Operation and Component Description
>>
The Refrigerant Cycle
>>

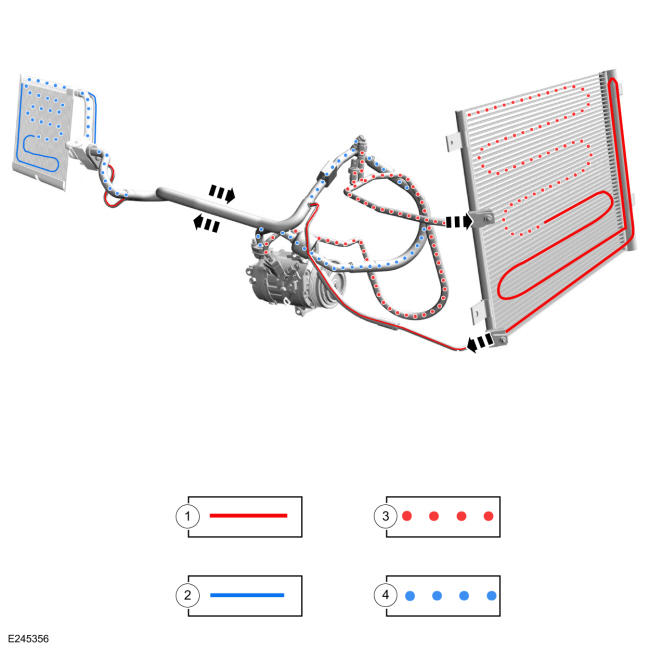

A/C Flow and State
A/C Flow and State
WARNING:
This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
Item
Description
1
High pressure liquid
2
Low pressure liquid
3
High pressure vapor
4
Low pressure vapor
