Service Gauge Port Valves
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

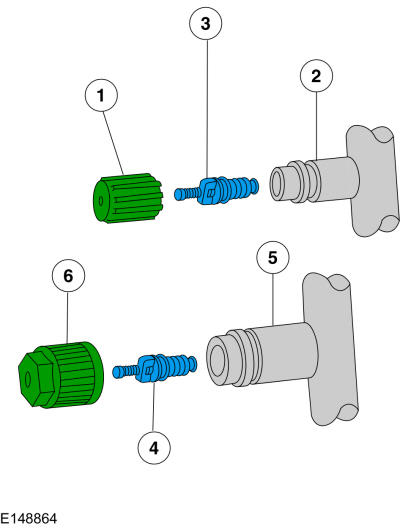

| Item | Description | Torque |
|---|---|---|
| 1 | Low-pressure service gauge port valve cap | 0.8 Nm (7 lb-in) |
| 2 | Low-pressure service gauge port valve | -- |
| 3 | Low-pressure Schrader-type valve | 1.8 Nm (16 lb-in) |
| 4 | High-pressure Schrader-type valve | 2.5 Nm (22 lb-in) |
| 5 | High-pressure service gauge port valve | -- |
| 6 | High-pressure service gauge port valve cap | 0.8 Nm (7 lb-in) |
The service gauge port fitting is an integral part of the refrigerant line or component.
- Prior to leak testing, blow air over the service gauge port valves to ensure an accurate test.
- Special couplings are required for both the high-side and low-side service gauge ports.
- A very small amount of leakage around the Schrader-type valve with the service gauge port valve cap removed is considered normal. Install a new Schrader-type valve core if the seal leaks excessively.
- The A/C service gauge port valve caps are used as primary seals in the refrigerant system to prevent leakage through the Schrader-type valves from reaching the atmosphere. Always install and tighten the A/C service gauge port valve caps to the correct torque after they are removed.
- Follow the procedure and the notes for electronic leak testing. Refer to GENERAL PROCEDURES .
