Exhaust Gas Recirculation (EGR) Valve: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

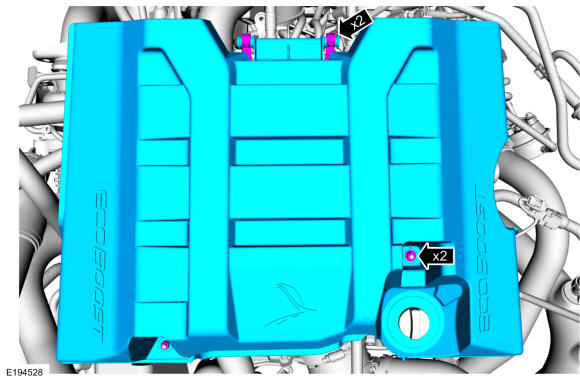

Remove the engine appearance cover retainers and then remove the engine appearance cover.
Torque: 42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY
Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .

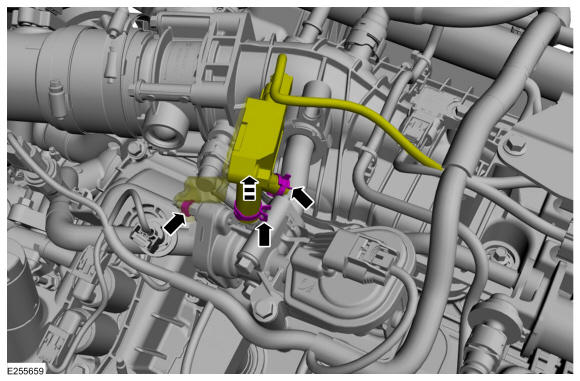

- Remove the nut.
  Torque: 53 lb.in (6 Nm)
- Loosen the clamps and position aside the differential pressure feedback EGR sensor.
Courtesy of FORD MOTOR COMPANY

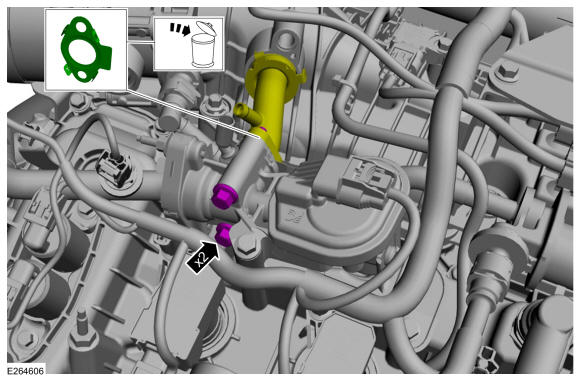

- Remove the EGR valve to EGR cold tube bolts.
- Remove and discard the gasket.
Courtesy of FORD MOTOR COMPANY

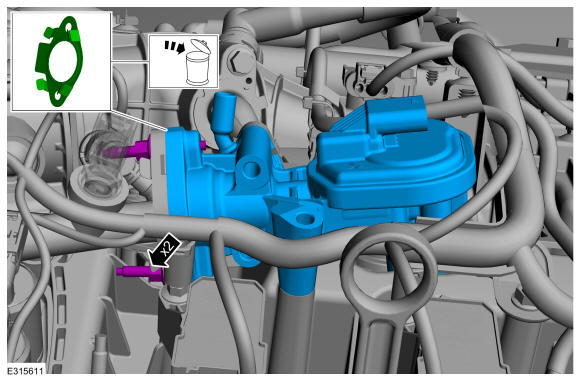

- Disconnect the EGR valve electrical connector and remove the bolt.
- Remove the screw.
Courtesy of FORD MOTOR COMPANY
- Remove the studs, remove and discard the gasket.
- Remove the EGR valve.

Courtesy of FORD MOTOR COMPANY
