Exhaust Gas Recirculation (EGR) Temperature Sensor: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

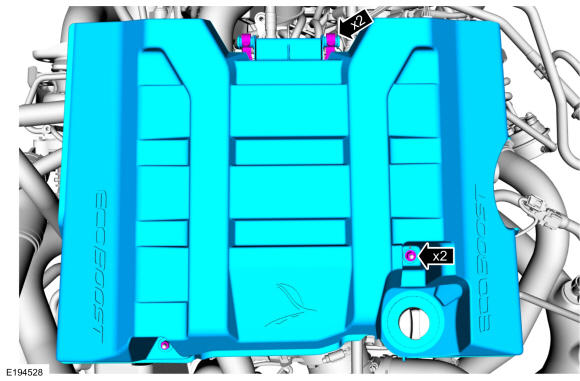

Remove the engine appearance cover retainers and then remove the engine appearance cover.
Torque: 42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY

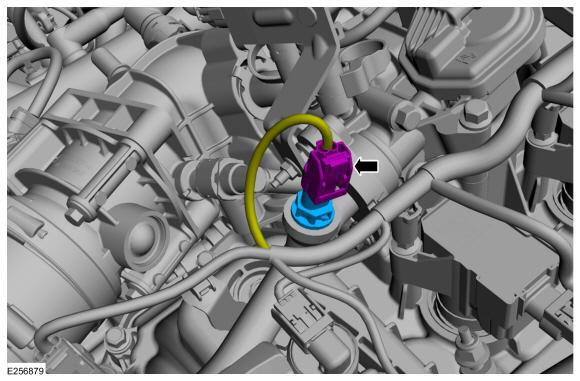

- Disconnect the electrical connector and position aside the wiring harness.
Courtesy of FORD MOTOR COMPANY

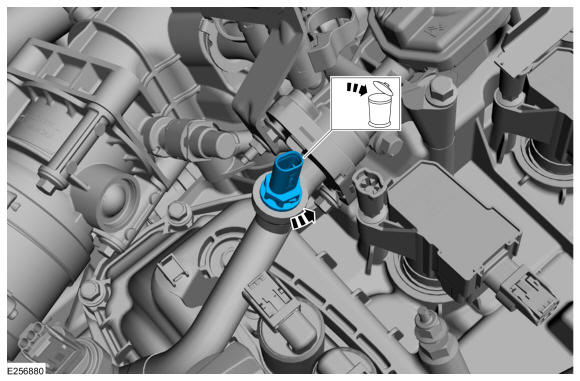

- Remove the EGR temperature sensor.
  Torque: 31 lb.in (3.5 Nm)

Courtesy of FORD MOTOR COMPANY
