Exhaust Gas Recirculation (EGR) Outlet Tube: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

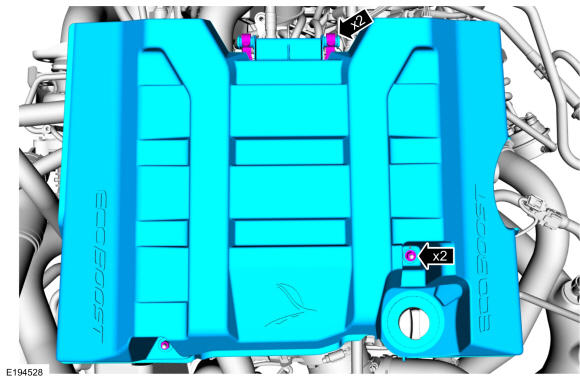

Remove the engine appearance cover retainers and then remove the engine appearance cover.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
- Remove the nut
- Detach the clamps and position aside the differential pressure feedback EGR sensor assembly.
Courtesy of FORD MOTOR COMPANY

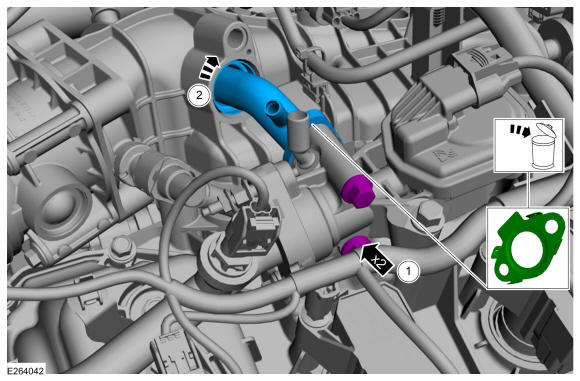

1. Remove the bolts, remove and discard the gasket and o-ring.
2. Remove the EGR valve outlet tube.
