Exhaust Gas Recirculation (EGR) Outlet Tube: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

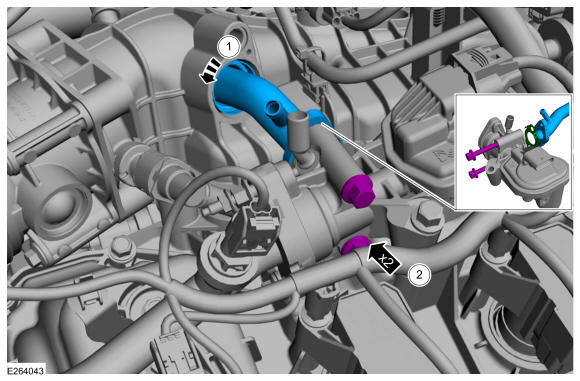

1. Install the new o-ring on the outlet tube and the new gasket. Install outlet tube into intake manifold bore.
2. Install the bolts.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

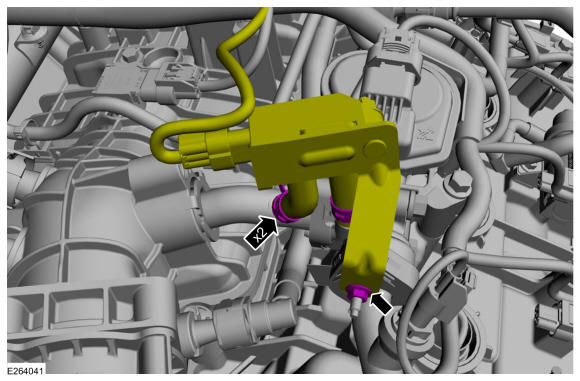

- Install the nut
  Torque: 53 lb.in (6 Nm)
- Attach the clamps and reinstall the differential pressure feedback EGR sensor assembly.
Courtesy of FORD MOTOR COMPANY
To install, reverse the removal procedure.
