Exhaust Gas Recirculation (EGR) Cooler: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine appearance cover retainers and then remove the engine appearance cover.
    GFD462880Courtesy of FORD MOTOR COMPANY
  2. Drain the cooling system. Refer to ENGINE COOLING SYSTEM DRAINING, VACUUM FILLING AND BLEEDING :

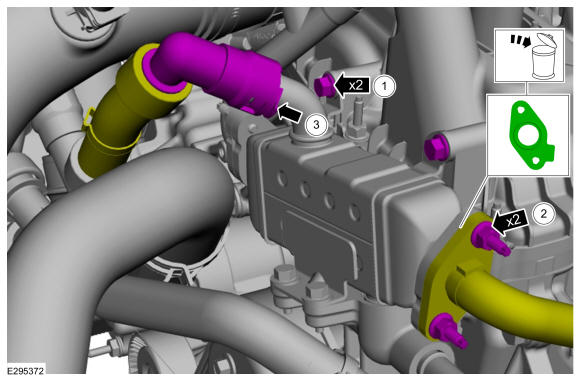

    1. Remove the EGR cooler mounting bolts.
    2. Remove the EGR cooler tube nuts and studs, position aside the EGR cooler tube and discard the gasket.
    3. Disconnect the quick release coupling and position aside the EGR cooler outlet hose.
    GFD462881Courtesy of FORD MOTOR COMPANY

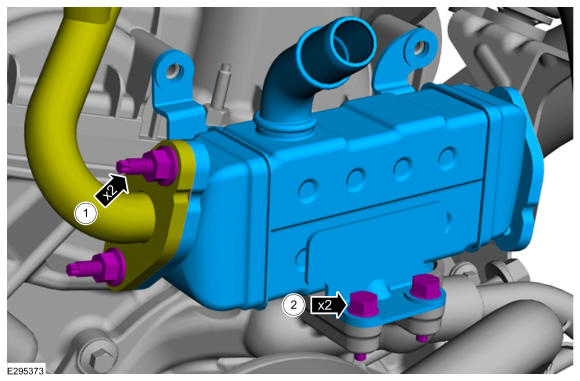

    1. Remove the EGR cooler tube nuts and studs.
    2. Remove the EGR cooler mounting bolts.
    GFD462882Courtesy of FORD MOTOR COMPANY

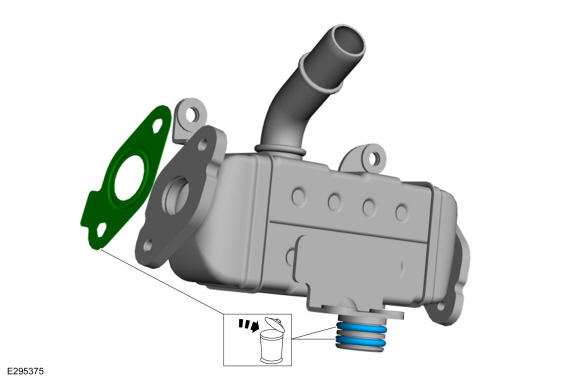

  5. Remove and discard the EGR cooler O-rings and gasket.
GFD462883Courtesy of FORD MOTOR COMPANY
