Exhaust Gas Recirculation (EGR) Cooler: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

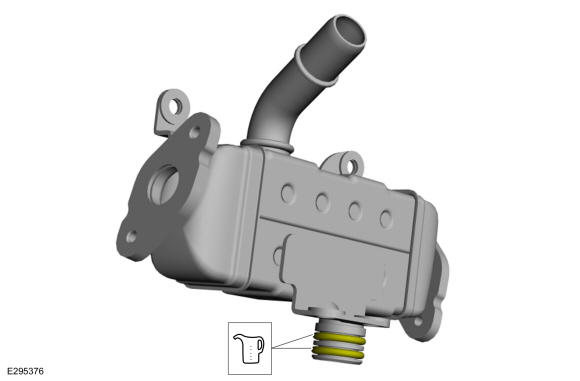

- Lubricate the new EGR cooler O-rings with a small amount of engine coolant.
  Material: Motorcraft® Orange Prediluted Antifreeze/Coolant / VC-3DIL-B (WSS-M97B44-D2)
Courtesy of FORD MOTOR COMPANY
- Position the EGR cooler to the water pump.

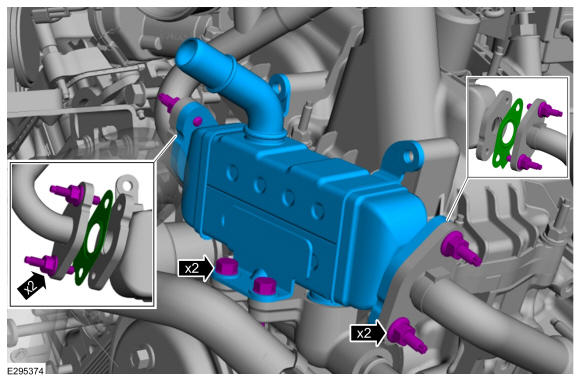

- Install the new gaskets and EGR cooler tube studs and nuts.
  Torque: 89 lb.in (10 Nm)
- Install the EGR cooler mounting bolts.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

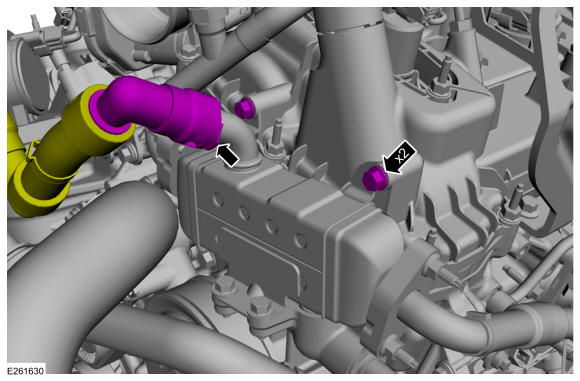

Install the EGR cooler mounting bolts and connect the EGR cooler outlet hose
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Fill the cooling system. Refer to ENGINE COOLING SYSTEM DRAINING, VACUUM FILLING AND BLEEDING

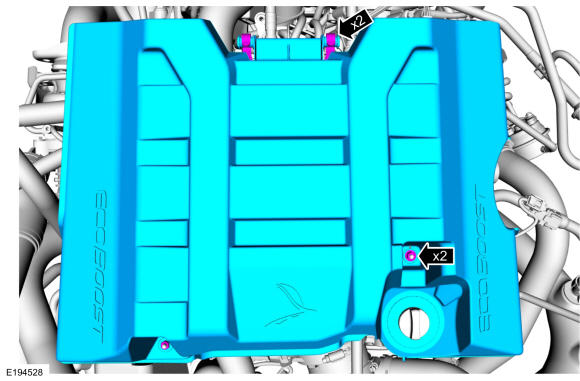

Install the engine appearance cover and the cover retainers.
Torque: 42 lb.in (4.8 Nm)
