Exhaust Gas Recirculation (EGR) Cooler to EGR Valve Tube: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove exhaust pressure sensor. Refer to: Exhaust Pressure Sensor .
- Remove EGR temperature sensor. Refer to: Exhaust Gas Recirculation (EGR) Temperature Sensor .
-

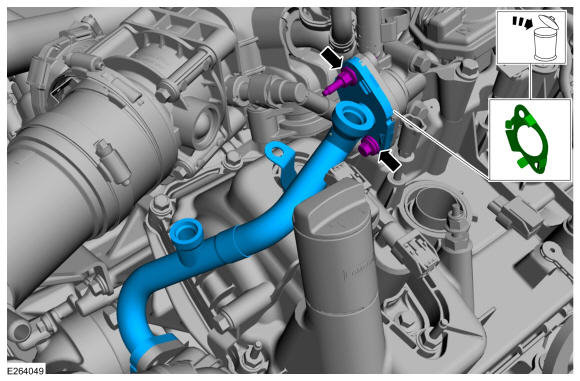

- Remove the EGR cooler to EGR valve tube nuts.
- Remove and discard the gasket.
- Remove the differential pressure feedback EGR sensor bracket nut.
-
- Remove the fasteners.
- Remove and discard the gasket.
- Remove the EGR cooler to EGR valve tube.
