Exhaust Gas Recirculation (EGR) Cooler to EGR Valve Tube: Installation
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
-

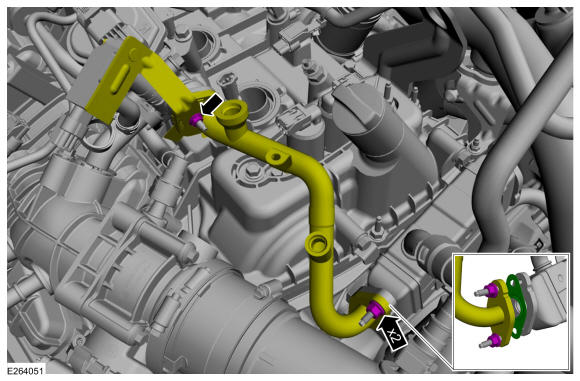

- Install the fasteners.
Torque: 89 lb.in (10 Nm)
- Install the new gasket and EGR cooler to EGR valve tube.
 Courtesy of FORD MOTOR COMPANY
|
-

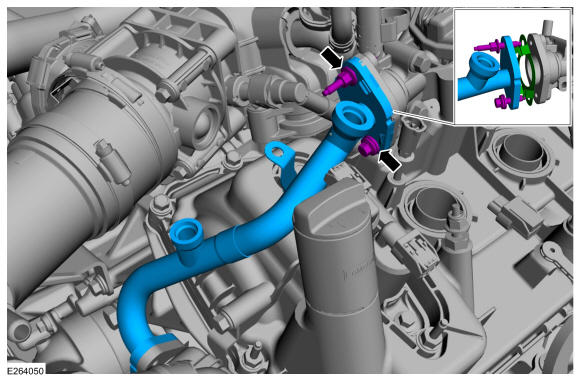

- Install the differential pressure feedback EGR sensor bracket nut.
Torque: 53 lb.in (6 Nm)
- Install the new gasket and EGR cooler to EGR valve tube.
Torque: 89 lb.in (10 Nm)
 Courtesy of FORD MOTOR COMPANY
|
