Exhaust Gas Recirculation (EGR) Cooler Inlet Tube: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-
- Remove the bolts and the skid plates.
-

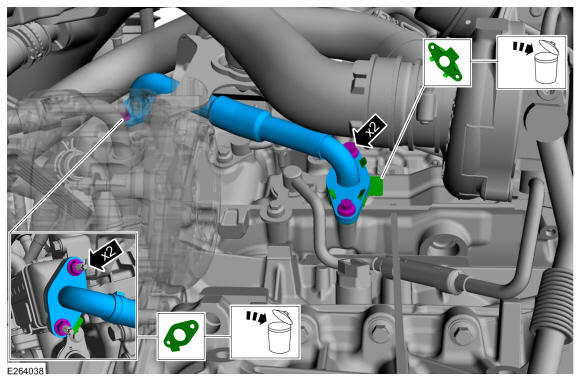

- Remove the fasteners.
- Remove the EGR cooler inlet tube.
- Remove and discard the gaskets.
