Exhaust Gas Recirculation (EGR) Cooler Inlet Tube: Installation
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
-

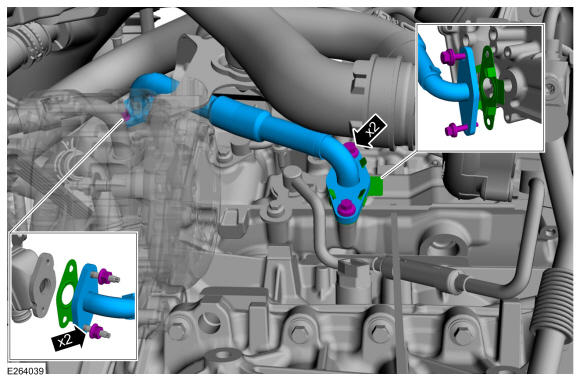

- Install the EGR cooler inlet tube and tighten the fasteners.
Torque: 80 lb.in (9 Nm)
 Courtesy of FORD MOTOR COMPANY
|
-
- Install the skid plates and tighten the bolts.
Torque: 30 lb.ft (40 Nm)
 Courtesy of FORD MOTOR COMPANY
|
