Differential Pressure Feedback Exhaust Gas Recirculation (EGR) Sensor: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the engine appearance cover retainers and then remove the engine appearance cover.
Torque: 42 lb.in (4.8 Nm)
-

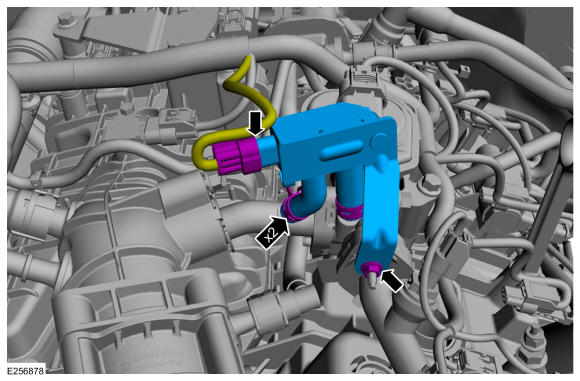

- Disconnect the electrical connector and position aside the wiring harness.
- Loosen the clamps.
- Remove the nut and the differential pressure feedback EGR sensor.
Torque: 53 lb.in (6 Nm)
