Glow Plug Wire: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Both glow plug wires

Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
Remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY
Remove the retainers and the engine appearance cover bracket.

Courtesy of FORD MOTOR COMPANY
Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY
NOTE: The oil filter housing needs a minimum of 1 minute to allow the oil to drain out of the oil filter housing to minimise oil spillage.

Loosen the oil filter cap and let the oil filter drain. Remove the oil filter cap.

Courtesy of FORD MOTOR COMPANY
Remove and discard the oil filter O-ring seal.

Courtesy of FORD MOTOR COMPANY
Remove and discard the oil filter.

Courtesy of FORD MOTOR COMPANY
Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
LH glow plug wire
Remove the bolt and position aside the fuel tube.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and slightly position aside the fuel pump mounting bracket.

Courtesy of FORD MOTOR COMPANY

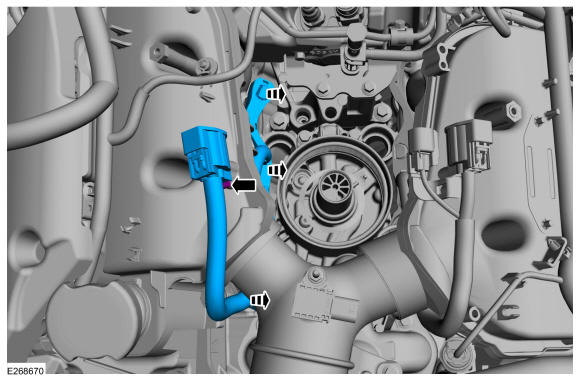

- Disconnect the CHT sensor electrical connector.
- Disconnect the bracket and remove the LH glow plug wire.
Courtesy of FORD MOTOR COMPANY

RH glow plug wire

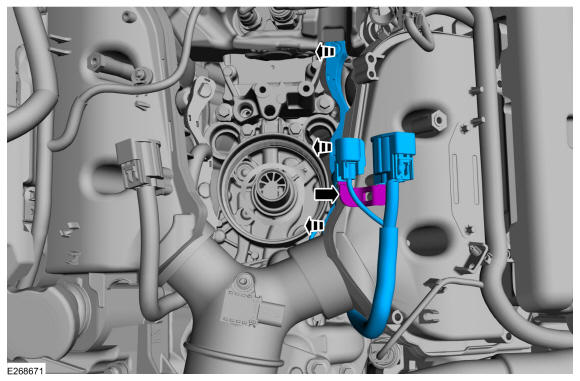

- Detach the wiring harness retainer.
- Disconnect the MAP electrical connector and position aside the wiring harness.
Courtesy of FORD MOTOR COMPANY
Disconnect and remove the RH glow plug wire.

Courtesy of FORD MOTOR COMPANY
