Glow Plug Module: Installation
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

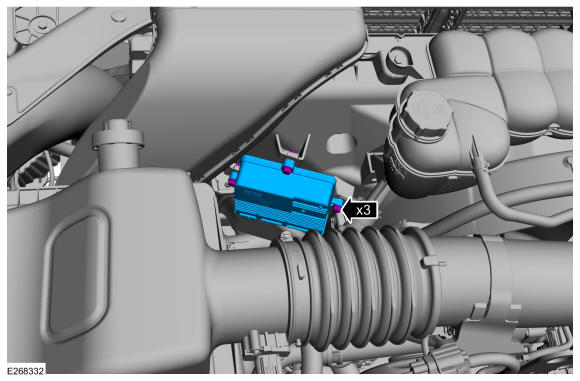

- Install the glow plug module, then install and tighten the glow plug module mounting bolts.
Torque
: 80 lb.in (9 Nm)
-
WARNING: Do not use dielectric compound or any other type of lubricant or grease on the glow plug control module connectors. Such material can migrate into the glow plug control module causing damage.

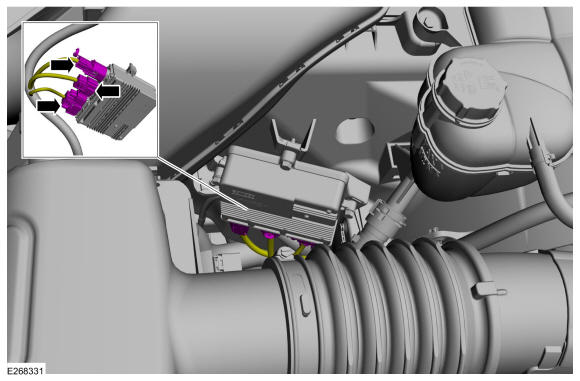

Connect the glow plug control module electrical connectors.
- Connect the battery. Refer to: Battery Disconnect and Connect .
