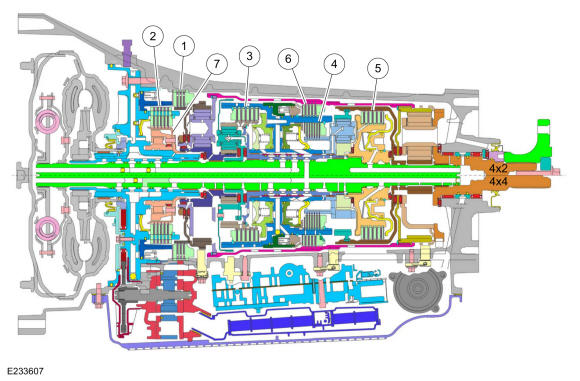

Component Location
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Part Number |
Description |
| 1 |
-- |
A clutch assembly |
| 2 |
-- |
B clutch assembly |
| 3 |
-- |
C clutch assembly |
| 4 |
-- |
D clutch assembly |
| 5 |
-- |
E clutch assembly |
| 6 |
-- |
F clutch assembly |
| 7 |
-- |
One-Way Clutch (OWC) |
