2nd Gear

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of FORD MOTOR COMPANY

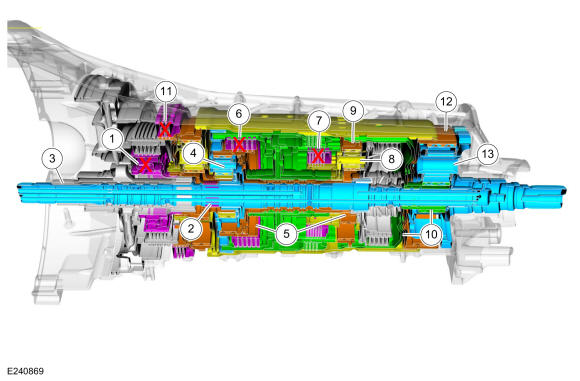

Item	Description
1	One-Way Clutch (OWC)
2	Sun gear No. 2
3	Input shaft
4	Planetary carrier No. 2
5	Ring gear No. 2 and sun gear No. 3
6	C clutch
7	D clutch
8	Planetary carrier No. 3
9	Ring gear No. 3
10	Shell and sun gear No. 4
11	A clutch
12	Ring gear No. 4
13	Output shaft and planetary carrier No. 4

The One-Way Clutch (OWC) holds the sun gear No. 2 stationary on acceleration. The input shaft turns the planetary carrier No. 2 and causes the ring gear No. 2 and sun gear No. 3 to rotate at a 0.63 overdrive ratio. The C clutch and the D clutch are applied allowing torque to be transferred from the ring gear No. 2 to the planetary carrier No. 3 at a 0.63 overdrive gear ratio. The 2 inputs to the 3rd planetary gear set cause the ring gear No. 3 and the planetary carrier No. to rotate at a 0.63 overdrive ratio. The A clutch and the One-Way Clutch (OWC) are both applied to hold the ring gear No. 4 stationary on acceleration. The shell and sun gear No. 4 drives the pinions of the output shaft and planetary carrier No. 4 in a 2.98 reduction gear ratio.
