Pump Assembly: Overview
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

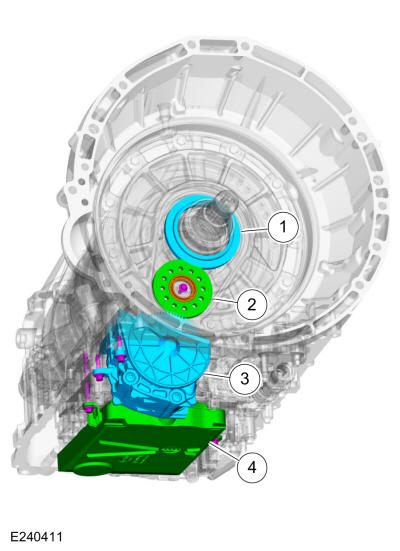

| Item | Description |
|---|---|
| 1 | Transmission fluid pump drive gear |
| 2 | Transmission fluid pump idler gear |
| 3 | Transmission fluid pump assembly |
| 4 | Transmission fluid filter |
The transmission fluid in the sump area at the bottom of the transmission case flows through a transmission fluid filter to the pump assembly. The pump is bolted to the bottom of the case and is driven by a set of gears mounted on the stator support and turned by the torque converter.
