Upper Valve Body
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

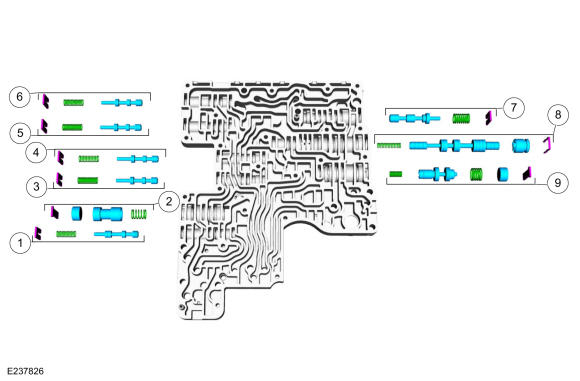

| 1 | Lube control valve assembly |
|---|---|
| 2 | Cooler bypass valve assembly |
| 3 | C clutch latch valve assembly |
| 4 | B clutch latch valve assembly |
| 5 | F clutch latch valve assembly |
| 6 | A clutch latch valve assembly |
| 7 | Clutch gain control valve assembly |
| 8 | TCC regulator valve assembly |
| 9 | Main regulator valve assembly |
The main control consists of a upper and lower valve body with solenoids that are controlled by a PCM or a TCM. The PCM or TCM operates the electrical components to provide refined engagement feel, shift feel, and shift scheduling.
