One-Way Clutch (OWC) Mechanical Operation
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
The One-Way Clutch (OWC) is a brake clutch that holds the sun gears No. 1 and 2 in one direction and allows it to freewheel in the opposite direction eliminating engine braking in 1st gear when the transmission is in drive. The rollers of the OWC lock to a inner race that is part of the front support assembly.

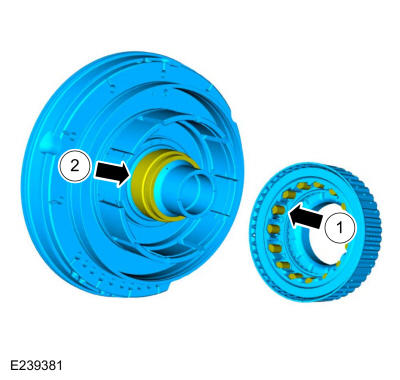

- One-Way Clutch (OWC) rollers
- One-Way Clutch (OWC) inner race
