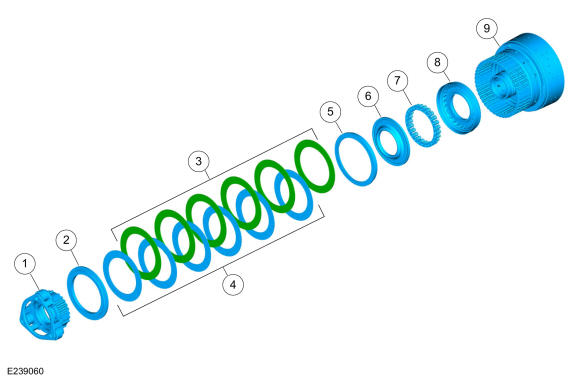

D Clutch Exploded View
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Planetary carrier No. 3 |
| 2 |
D clutch pressure plate |
| 3 |
D clutch steel plates |
| 4 |
D clutch friction plates |
| 5 |
D clutch apply ring |
| 6 |
D clutch balance dam |
| 7 |
D clutch piston return spring |
| 8 |
D clutch piston |
| 9 |
CDF clutch cylinder |
