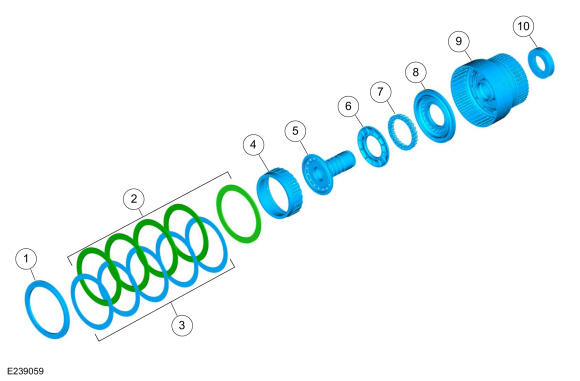

C Clutch Exploded View
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
C clutch pressure plate |
| 2 |
C clutch steel plates |
| 3 |
C clutch friction plates |
| 4 |
Ring gear No. 2 |
| 5 |
Shaft (sun gear No 3) |
| 6 |
C clutch balance dam |
| 7 |
C clutch piston return spring |
| 8 |
C clutch piston |
| 9 |
CDF clutch cylinder |
| 10 |
Sun gear No. 3 |
