A Clutch: Overview
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|

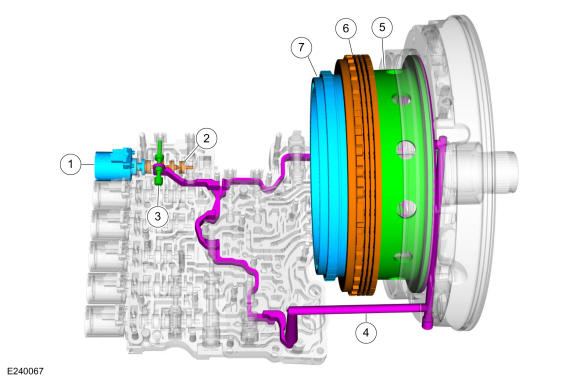

| Item |
Description |
| 1 |
SSA |
| 2 |
A clutch control valve |
| 3 |
A clutch latch valve |
| 4 |
A clutch apply circuit |
| 5 |
A clutch piston |
| 6 |
A clutch assembly |
| 7 |
Ring gear No. 1 |
Ring gear No. 1 is connected to the A clutch. When the A clutch applies, it holds the ring gear No. 1 stationary.
