Reductant Pump and Heater Assembly: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Selective Catalyst Reduction (SRC)/Reductant system components are very sensitive to external contamination. Any possible measure should be taken to prevent contamination from entering the system while servicing it.

NOTE: Discard the drained reductant fluid. Always refill the reductant tank with new reductant fluid to avoid reductant system contamination.

NOTE: Fresh reductant fluid should be the only lubricant used in the assembly of these components. The use of any other lubricant ESPECIALLY PETROLEUM BASED LUBES may cause damage to the system.

NOTE: Reductant fluid can corrode some metals. Reductant fluid must be stored and transported carefully. Reductant fluid must be disposed of according to local regulations.

NOTE: Petroleum contamination will cause permanent damage to the reductant system.

Remove the reductant tank. Refer to: Reductant Tank .
Remove the fastener and reductant tank shield.

Courtesy of FORD MOTOR COMPANY
- Disconnect the reductant pump and heater assembly electrical connector.
- Use clean low pressure water to remove any foreign material from the reductant pump and heater assembly and surrounding area before removal. Use regulated low pressure compressed air to remove the residual water from the reductant pump and heater assembly.
Courtesy of FORD MOTOR COMPANY

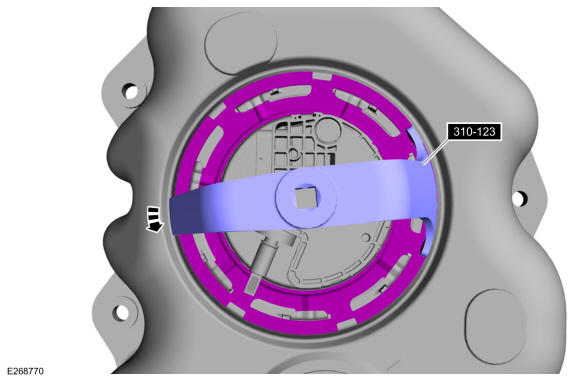

Using the Fuel Tank Locking Ring wrench, remove the reductant pump and heater assembly lock ring. Use Special Service Tool: 310-123 Locking Ring, Fuel Tank.

Courtesy of FORD MOTOR COMPANY
NOTE: Note the orientation of the reductant pump and heater assembly locator tab on the reductant tank for installation.

Remove the reductant pump and heater assembly from the reductant tank.

Courtesy of FORD MOTOR COMPANY

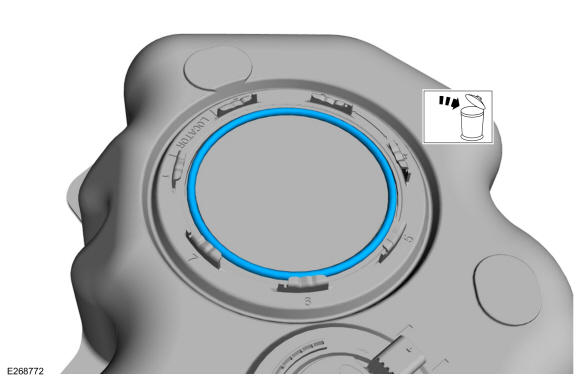

Remove and discard the reductant pump and heater assembly seal.

Courtesy of FORD MOTOR COMPANY
