Reductant Pressure Line: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Selective Catalyst Reduction (SRC)/Reductant system components are very sensitive to external contamination. Any possible measure should be taken to prevent contamination from entering the system while servicing it.

NOTE: Reductant fluid can corrode some metals. Reductant fluid must be stored and transported carefully. Reductant fluid must be disposed of according to local regulations.

NOTE: Fresh reductant fluid should be the only lubricant used in the assembly of these components. The use of any other lubricant ESPECIALLY PETROLEUM BASED LUBES may cause damage to the system.

NOTE: Reductant fluid can corrode some metals. Reductant fluid must be stored and transported carefully. Reductant fluid must be disposed of according to local regulations.

NOTE: Petroleum contamination will cause permanent damage to the reductant system.

NOTE: There are many body, chassis, frame and reductant tank configurations, it is not possible to cover all of the different configurations.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

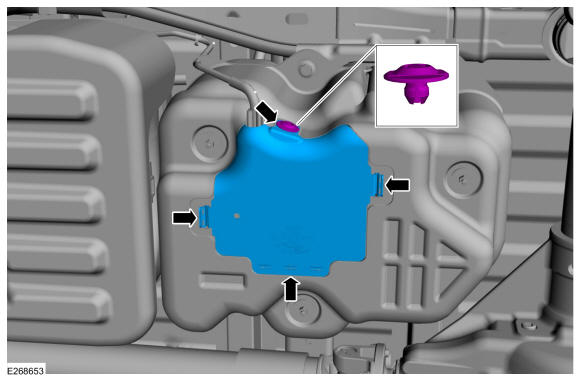

Remove the lower reductant tank cover access door retainer and then remove the lower reductant tank cover access door.

Courtesy of FORD MOTOR COMPANY
NOTE: When disconnecting the reductant pressure line from the reductant pump assembly, gently press the reductant pressure line connector towards the pump assembly and hold. Then press the connector tabs and pull the connector straight off the pump assembly nipple. Failure to follow these instructions may cause damage to the reductant pump assembly and the reductant pressure line.

NOTE: Disconnect the reductant pressure line before disconnecting the reductant pressure line heater electrical connector.

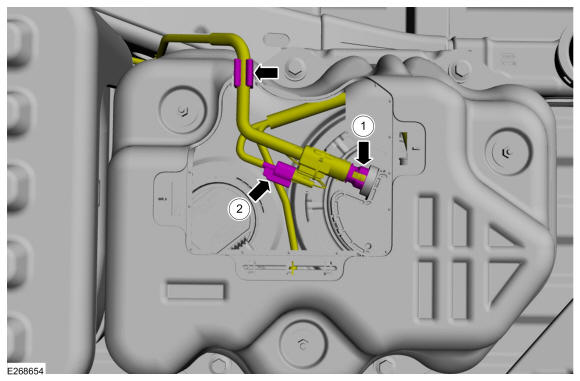

1. Disconnect the reductant pressure line quick release coupling from the reductant pump. Refer to Quick Release Coupling
2. Disconnect the reductant pressure line heater electrical connector.
- Release the reductant pressure line from the reductant tank cover retainer and the reductant tank.
Courtesy of FORD MOTOR COMPANY
NOTE: The length of the reductant pressure line, the number and location of the reductant pressure line retainers will vary with the many body, chassis, frame, and reductant tank configurations.

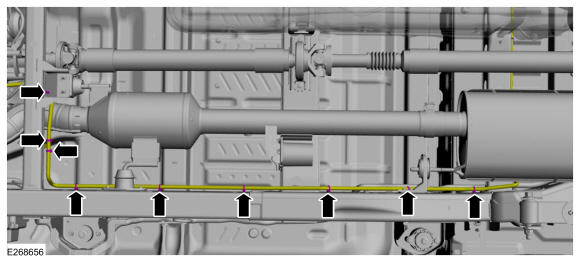

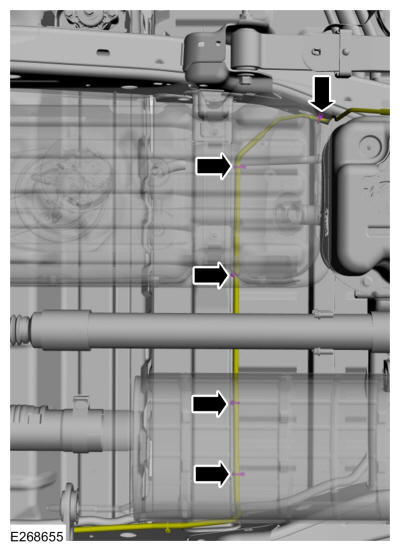

Detach the reductant pressure line retainers.

Courtesy of FORD MOTOR COMPANY
NOTE: The length of the reductant pressure line, the number and location of the reductant pressure line retainers will vary with the many body, chassis, frame, and reductant tank configurations.

Courtesy of FORD MOTOR COMPANY

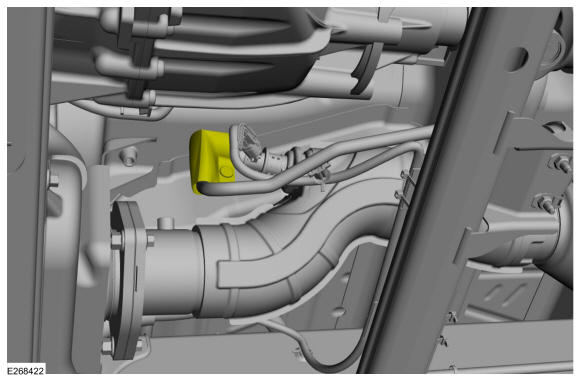

Slide the reductant injector reductant pressure line heat shield back out of the way.

Courtesy of FORD MOTOR COMPANY
NOTE: When disconnecting the reductant pressure line from the reductant injector, gently press the reductant pressure line connector towards the injector and hold. Then press the connector tabs and pull the connector straight off the injector nipple. Failure to follow these instructions may cause damage to the reductant injector and the reductant pressure line.

NOTE: Do not use any tools when disconnecting the reductant pressure line. The use of tools may cause a deformity in the clip components which may cause reductant leaks.

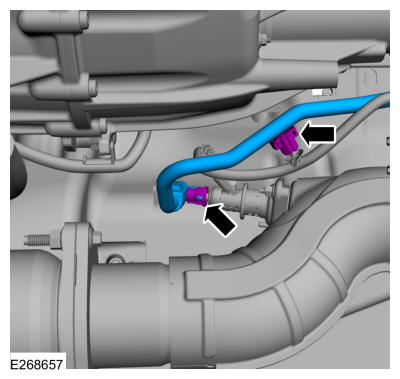

Gently press the reductant pressure line connector towards the reductant injector and hold. Press the reductant pressure line connector tabs and pull the reductant pressure line connector straight off the reductant injector nipple. Remove the reductant pressure line.

Courtesy of FORD MOTOR COMPANY
