Exhaust Gas Recirculation (EGR) System Module: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
Remove the following items:
1. Remove the air cleaner. Refer to: Air Cleaner .
2. Remove the fender splash shield. Refer to: Fender Splash Shield .
3. Remove the exhaust pressure sensor. Refer to: Exhaust Pressure Sensor .
Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY

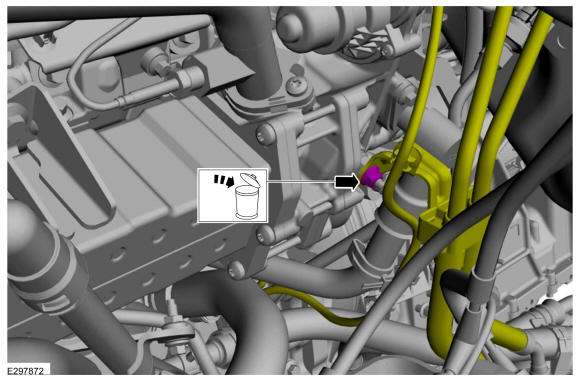

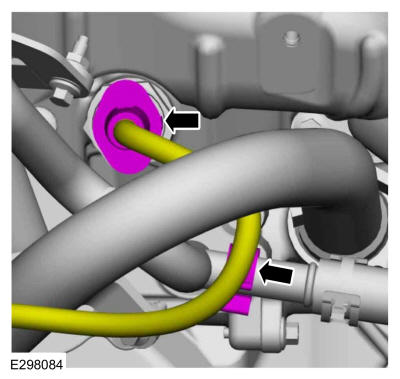

Remove and discard the fastener. Position aside the bracket and fuel tube assembly.

Courtesy of FORD MOTOR COMPANY

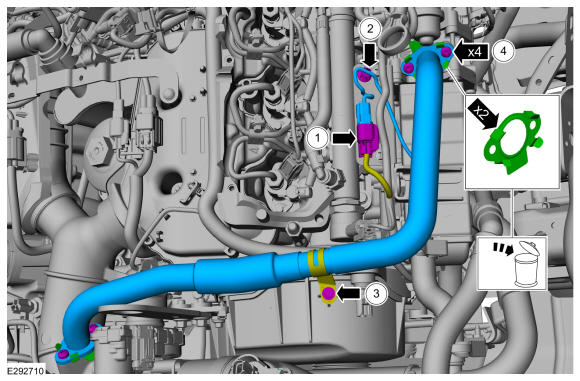

1. Disconnect EGR temperature sensor electrical connector.
2. Remove the wiring retainer.
3. Remove the retainer from the timing belt cover.
4. Remove the retainers and the EGR outlet tube.
- Remove and discard the outlet gaskets.
Courtesy of FORD MOTOR COMPANY

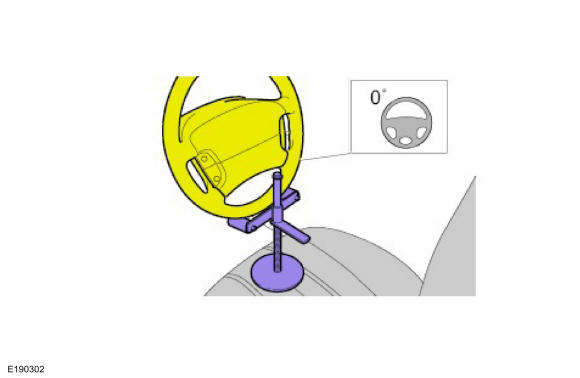

Using a holding device, hold the steering wheel in the straight ahead position.

Courtesy of FORD MOTOR COMPANY

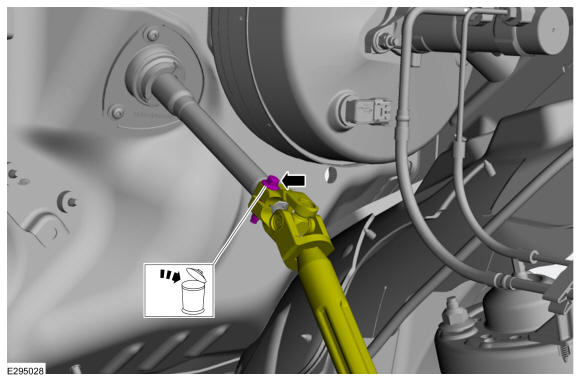

Remove and discard the bolt. Disconnect and position aside the lower steering shaft.

Courtesy of FORD MOTOR COMPANY

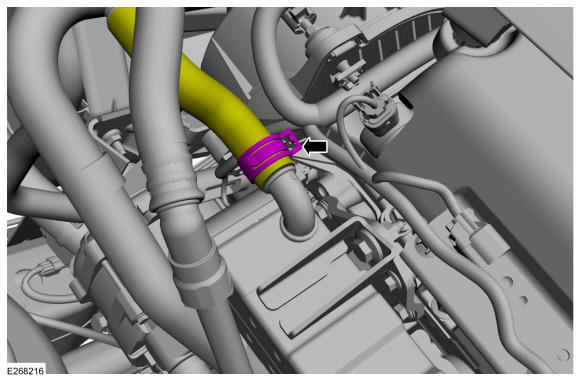

Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

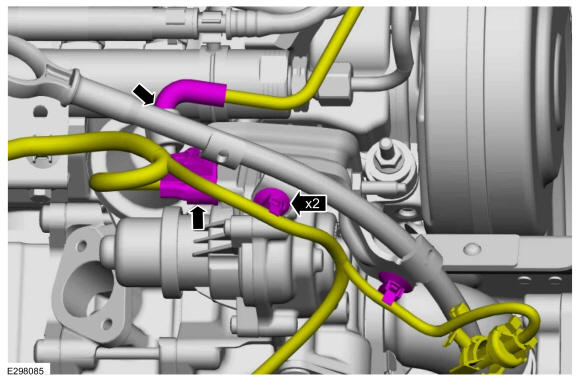

- If equipped, disconnect the electrical connector and the emission system control hose.
- Disconnect the wire retainers from the oil level indicator.
Courtesy of FORD MOTOR COMPANY

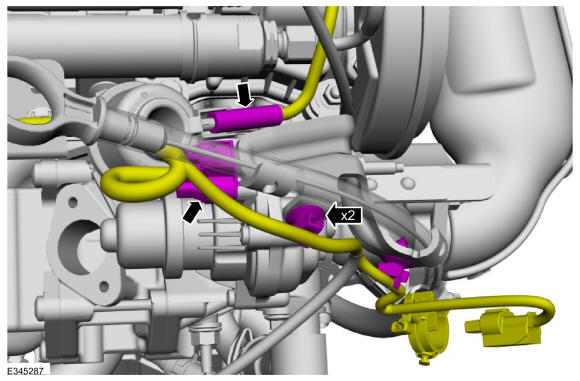

- If equipped, disconnect the electrical connector and the emission system control hose.
- Disconnect the wire retainers from the oil level indicator.
Courtesy of FORD MOTOR COMPANY

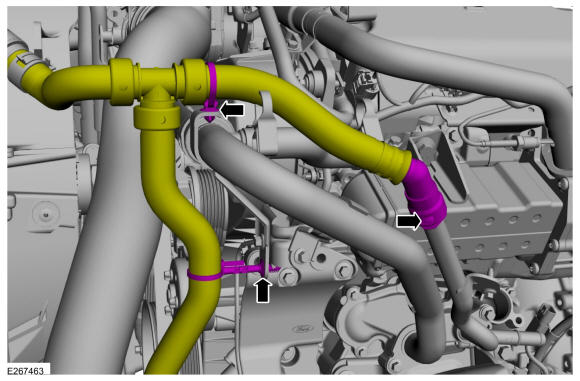

Detach the retainers and disconnect the coolant hose connector.

Courtesy of FORD MOTOR COMPANY
Remove the oil level indicator.

Courtesy of FORD MOTOR COMPANY

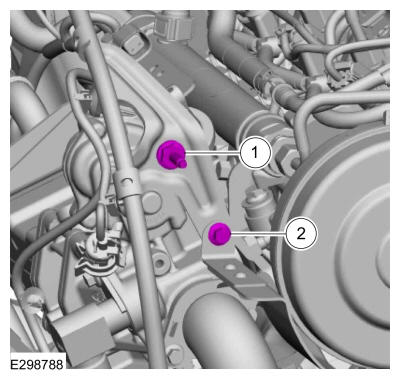

1. Remove the stud bolt.
2. Remove the bolt.
Courtesy of FORD MOTOR COMPANY

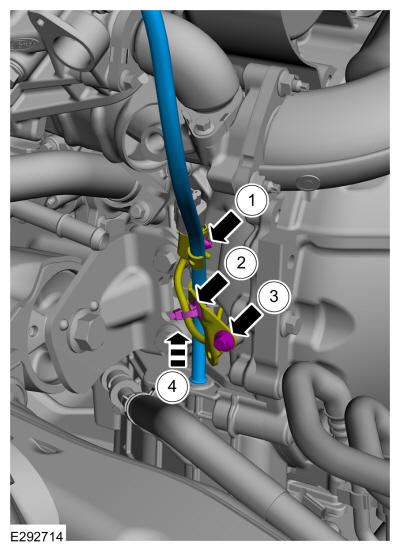

1. Detach the retainer.
2. Detach the retainer.
3. Remove the fastener.
4. Pull the oil level indicator tube upwards to remove.
Courtesy of FORD MOTOR COMPANY

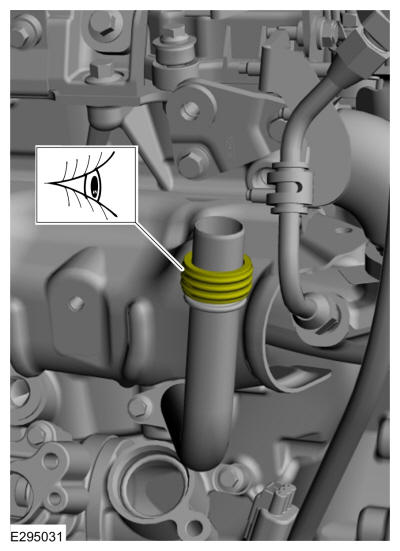

Inspect the O-ring seal and replace if necessary.

Courtesy of FORD MOTOR COMPANY
Remove the pin-type retainer. Remove the bolts and the transmission housing cover.

Courtesy of FORD MOTOR COMPANY
If equipped, remove the bolts and the underbody shield.

Courtesy of FORD MOTOR COMPANY
If equipped, remove the bolts and the skid plate.

Courtesy of FORD MOTOR COMPANY
Disconnect the block heater electrical connector and the retainer.

Courtesy of FORD MOTOR COMPANY

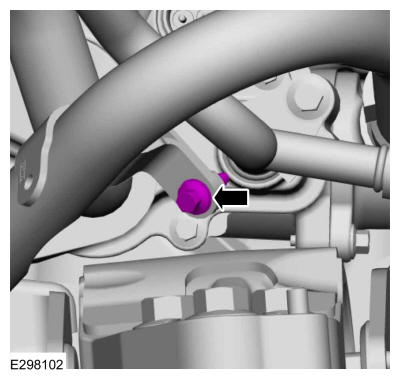

Remove the lower radiator coolant tube bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: Lower radiator coolant tube removed for clarity.

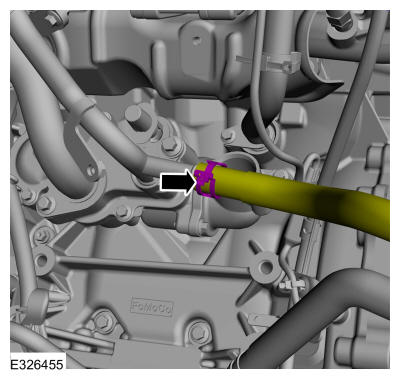

1. Remove the hose clamp and position the aside hose. Remove the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY
Remove the heater coolant outlet tube.

Courtesy of FORD MOTOR COMPANY
Inspect the O-ring seal and replace if necessary.

Courtesy of FORD MOTOR COMPANY

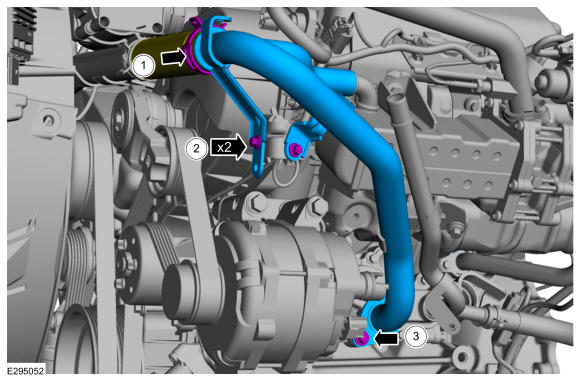

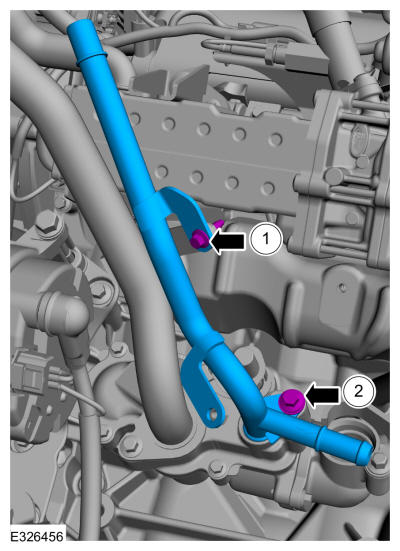

1. Release the clamp and disconnect the coolant bypass hose. Use the General Equipment: Hose Clamp Remover/Installer
2. Remove the bolts and the coolant bypass tube.
Courtesy of FORD MOTOR COMPANY
Inspect the O-ring seal and replace if necessary.

Courtesy of FORD MOTOR COMPANY

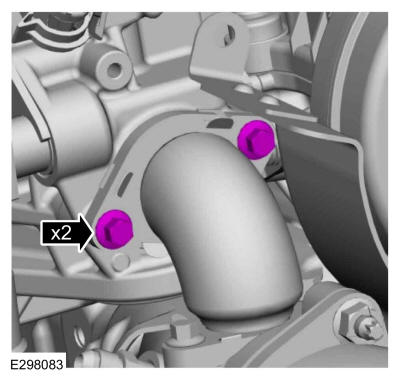

Remove the EGR cooler inlet tube bolts.

Courtesy of FORD MOTOR COMPANY

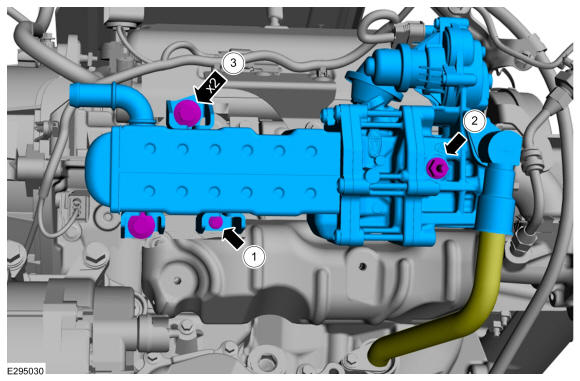

1. Remove the bolt.
2. Remove the stud bolt.
3. Remove the bolts and EGR cooler assembly.
Courtesy of FORD MOTOR COMPANY

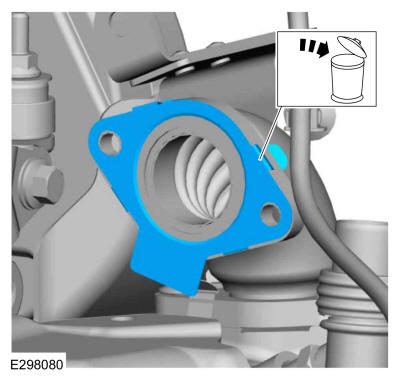

Remove and discard the inlet tube gasket.

Courtesy of FORD MOTOR COMPANY
Inspect the grommet and replace if necessary.

Courtesy of FORD MOTOR COMPANY

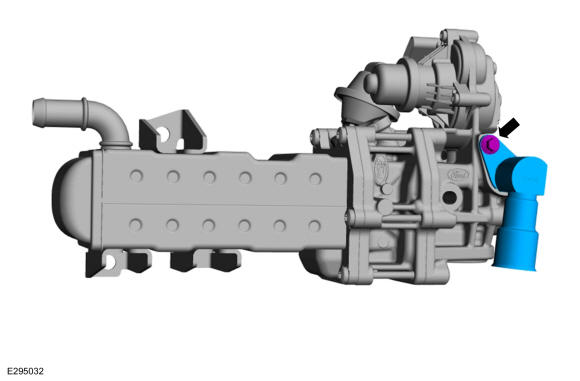

NOTE: The removal of the EGR coolant inlet tube is only necessary if the EGR system module is being replaced.

Remove the bolt and the EGR coolant inlet tube.

Courtesy of FORD MOTOR COMPANY
Inspect the O-ring seal and replace if necessary.

Courtesy of FORD MOTOR COMPANY
