Exhaust Gas Recirculation (EGR) Inlet Tube: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the fender splash shield. Refer to: Fender Splash Shield .

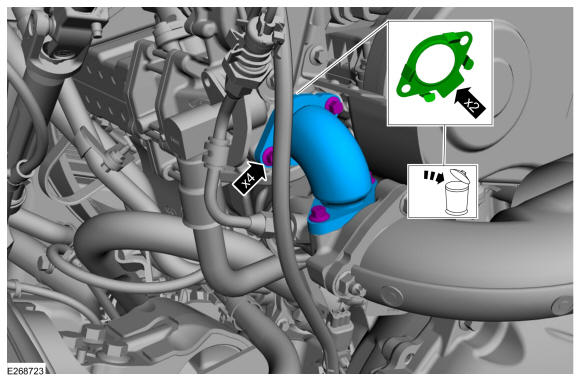

    • Remove the fasteners and the EGR inlet tube.

    • Remove and discard the gaskets.

GFD462981Courtesy of FORD MOTOR COMPANY
