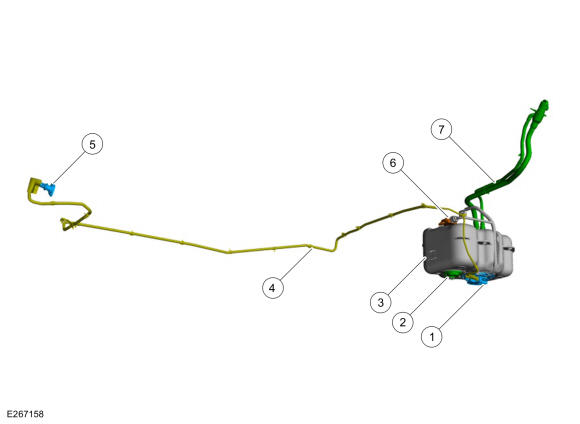

Reductant System
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Part Number |
Description |
| 1 |
-- |
Reductant pump and heater assembly |
| 2 |
-- |
Reductant level sensor |
| 3 |
-- |
Reductant tank |
| 4 |
-- |
Reductant pressure line |
| 5 |
-- |
Reductant injector |
| 6 |
-- |
Reductant pump control module |
| 7 |
-- |
Reductant tank filler hose |
