EGR system
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

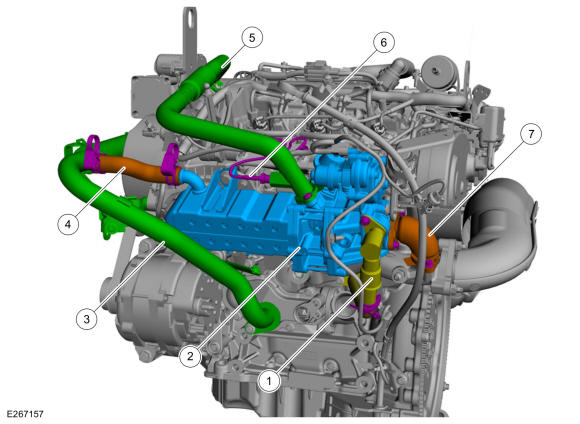

| Item | Part Number | Description |
|---|---|---|
| 1 | -- | Exhaust gas recirculation (EGR) coolant inlet tube |
| 2 | -- | Exhaust Gas Recirculation (EGR) System Module |
| 3 | -- | Bypass tube |
| 4 | -- | Exhaust Gas Recirculation (EGR) Coolant Outlet Hose |
| 5 | -- | Exhaust gas recirculation (EGR) outlet tube |
| 6 | -- | Exhaust gas recirculation (EGR) temperature sensor |
| 7 | -- | Exhaust gas recirculation (EGR) inlet tube |
