Powertrain Control Module (PCM): Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

Download the module information to the diagnostic tool using the Programmable Modules Installation routine. Refer to: Module Programming .

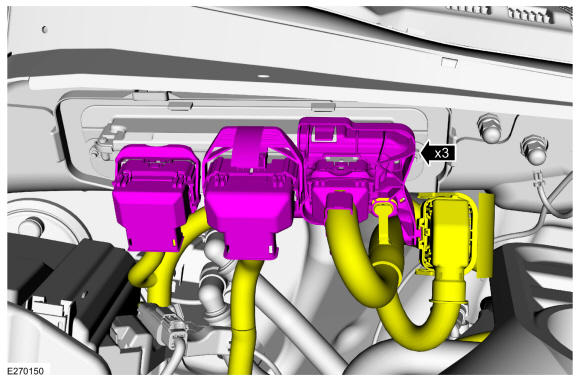

Disconnect the PCM electrical connectors and pushpin retainer cover.

Courtesy of FORD MOTOR COMPANY

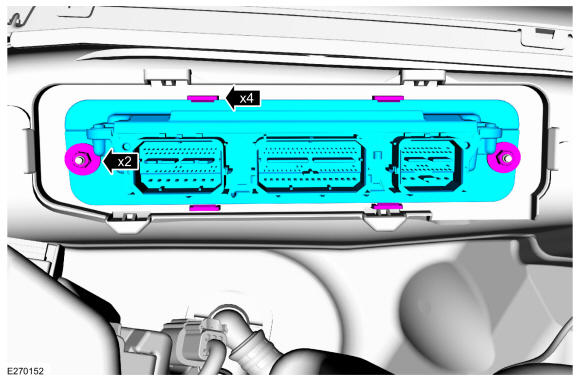

Remove the nuts and the PCM.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
