Particulate Matter Sensor: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The particulate matter sensor module is serviced as an assembly with the particulate matter sensor.

NOTE: Particulate Matter sensor wiring harness routing and position of retainers varies by wheelbase, frame width and length. Typical shown others similar.

NOTE: Do not apply any type of electrical grease or lubricants to the electrical connector.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

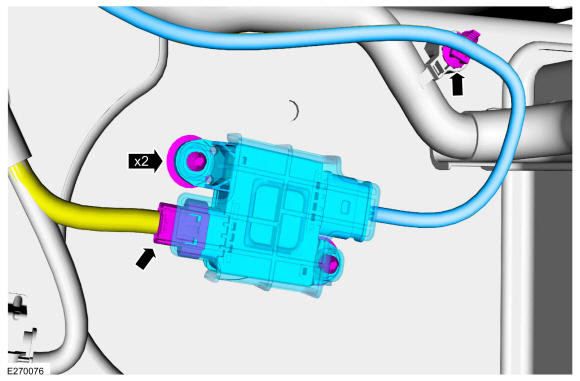

Remove the particulate matter sensor module.
- Disconnect the particulate matter sensor module electrical connector and disconnect the wiring retainer.
- Depress the retainer clips to release the module from the frame.
Courtesy of FORD MOTOR COMPANY
NOTE: If necessary, lubricate the particulate matter sensor with penetrating and lock lubricant to ease removal.

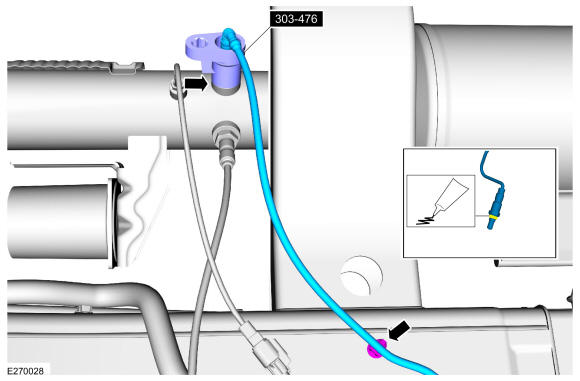

Remove the particulate matter sensor and module. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

Material: Motorcraft® Penetrating and Lock Lubricant / XL-1

Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
