Mass Air Flow (MAF) Sensor: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

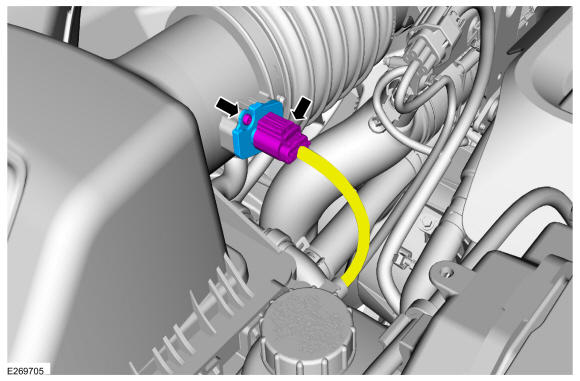

- Disconnect the MAF electrical connector. Remove the screws and the MAF sensor.
Torque: 18 lb.in (2 Nm)
 Courtesy of FORD MOTOR COMPANY
|
