Manifold Absolute Pressure (MAP) Sensor: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details

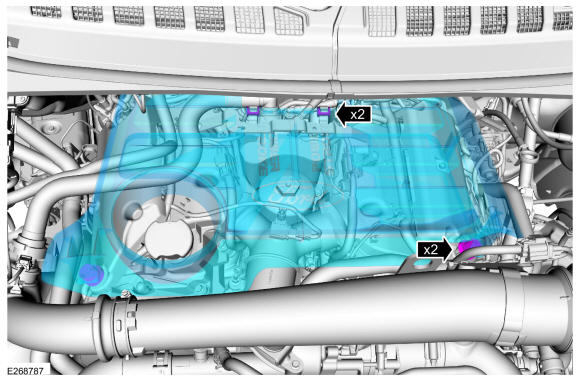

- Remove engine appearance cover.
 Courtesy of FORD MOTOR COMPANY
|

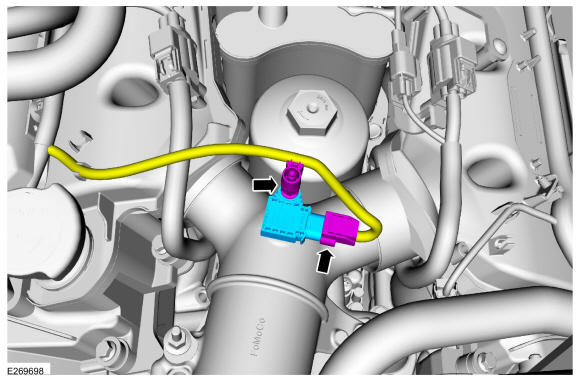

- Disconnect the MAP sensor electrical connector and harness retainer from the stud bolt. Remove the stud bolt and the sensor.
Torque: 44 lb.in (5 Nm)
 Courtesy of FORD MOTOR COMPANY
|
