Crankshaft Position (CKP) Sensor: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the LH fender splash shield. Refer to: Fender Splash Shield .
-
NOTE: Lubricate the O-ring seal prior to installing the oil level indicator tube.

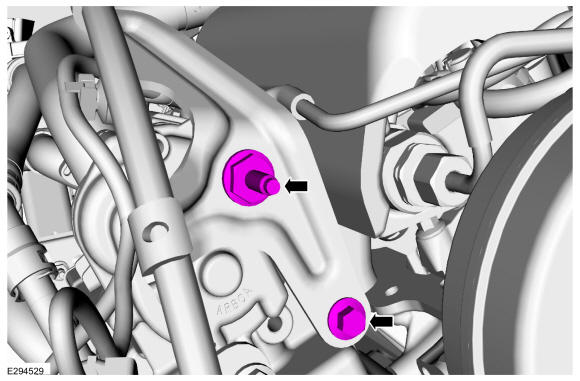

Remove the bolt and the stud bolt.
Torque: Bolt: 89 lb.in (10 Nm) Stud bolt: 89 lb.in (10 Nm)

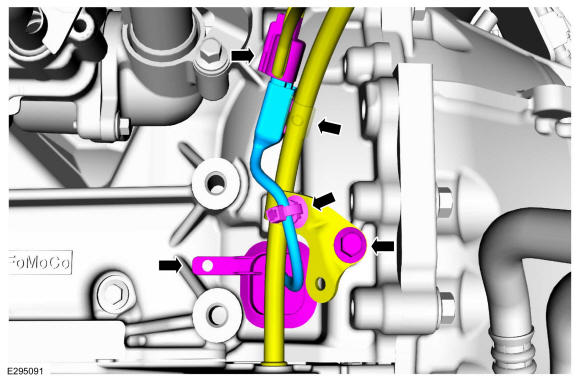

- Disconnect the CKP sensor electrical connector and the harness pushpins. Remove the bolt and the CKP sensor cover. Position aside the oil level indicator tube.
Torque: 89 lb.in (10 Nm)

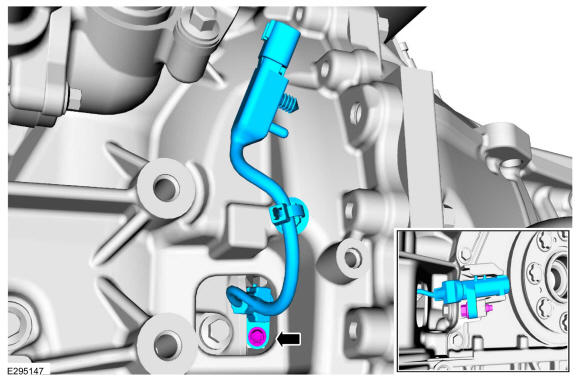

- Remove the bolt and the CKP sensor.
Torque: 44 lb.in (5 Nm)
