Throttle Body: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

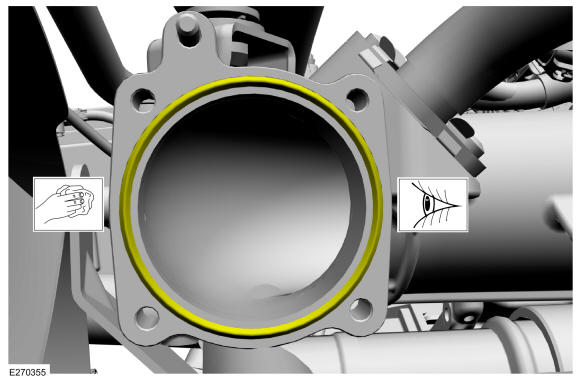

NOTE: Make sure that the mating faces are clean and free of foreign material.

Inspect the throttle body gasket, clean and replace the throttle body gasket as needed.

Courtesy of FORD MOTOR COMPANY
Install the throttle body, then install and tighten the throttle body bolts in the sequence shown.
Torque: 89 lb.in (10 Nm)

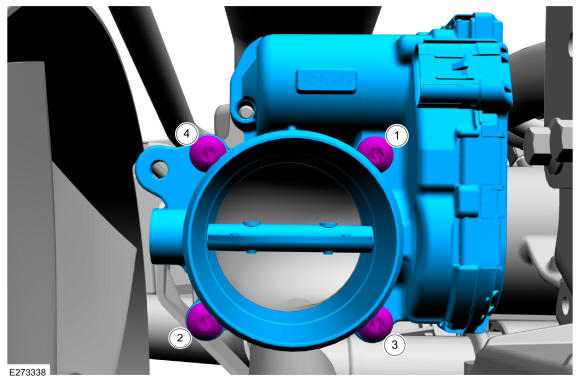

Fig 1: Throttle Body Tightening Sequence
Courtesy of FORD MOTOR COMPANY

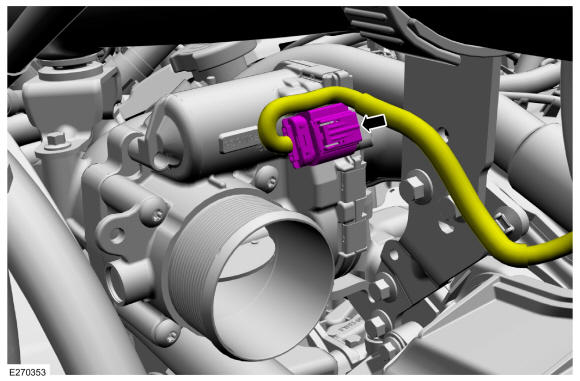

Connect the throttle body electrical connector.

Courtesy of FORD MOTOR COMPANY
Install the charge air cooler outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
Road test the vehicle.
