Fuel Rail RH: Installation
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

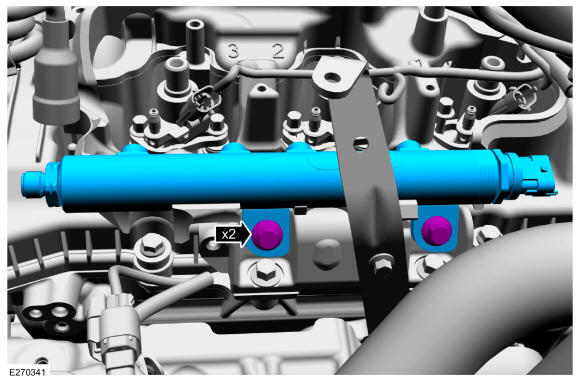

- Install the right fuel rail, then install and tighten the bolts.
Torque: 17 lb.ft (23 Nm)

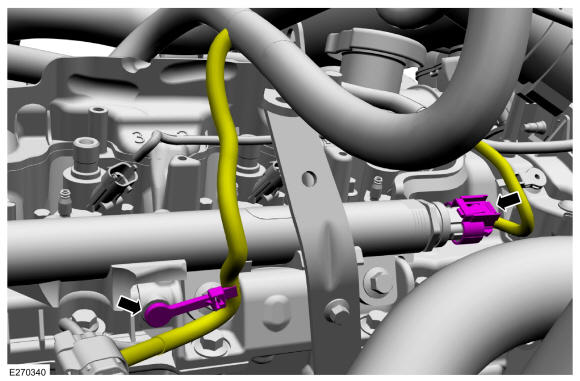

- Attach the wire retainer, then connect the electrical connector.
- Install the new fuel rail balance tube. Refer to: Fuel Rail Balance Tube .
- Install the new fuel injector supply tubes RH. Refer to: Fuel Injector Supply Tube RH .
- Install the new fuel rail supply tube RH. Refer to: Fuel Rail Supply Tube RH .
