Fuel Rail LH: Installation
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

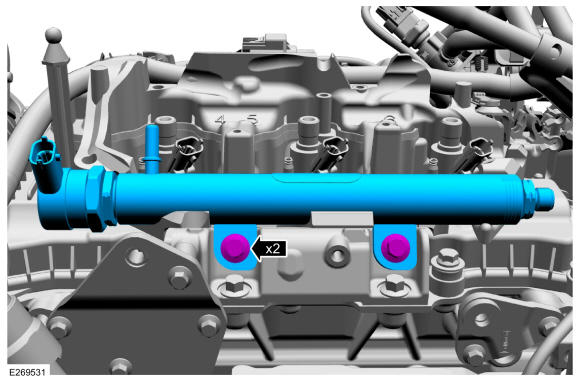

- Install the left fuel rail, then install and tighten the bolts.
Torque: 17 lb.ft (23 Nm)

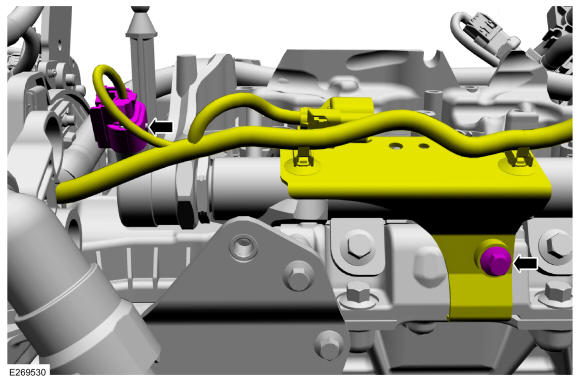

- Install the wire bracket, install and tighten the bolt, then connect the electrical connector.
Torque: 89 lb.in (10 Nm)
- Install the new fuel rail balance tube. Refer to: Fuel Rail Balance Tube .
- Install the new fuel injector supply tubes LH. Refer to: Fuel Injector Supply Tube LH .
- Install the new fuel rail supply tube LH. Refer to: Fuel Rail Supply Tube LH .
- Install the exhaust gas recirculation (EGR) system module. Refer to: Exhaust Gas Recirculation (EGR) System Module .
