Fuel Injectors RH: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Do not work on the fuel system until the pressure has been released and the engine has cooled. Fuel in the high-pressure fuel system is hot and under very high pressure. High-pressure fuel may cause cuts and contact with hot fuel may cause burns. Failure to follow these instructions may result in serious personal injury.
NOTE:
Fuel injection equipment is manufactured to very precise tolerances and fine clearances. To prevent fuel system damage, it is essential that absolute cleanliness is observed when working with these components.
NOTE:
The PCM (powertrain control module) is programmed with an ICF code for each fuel injector. Note the fuel injector cylinder location for installation.
- Remove and discard the fuel injector supply tubes for the fuel injectors that are being removed. Refer to: Fuel Injector Supply Tube RH .

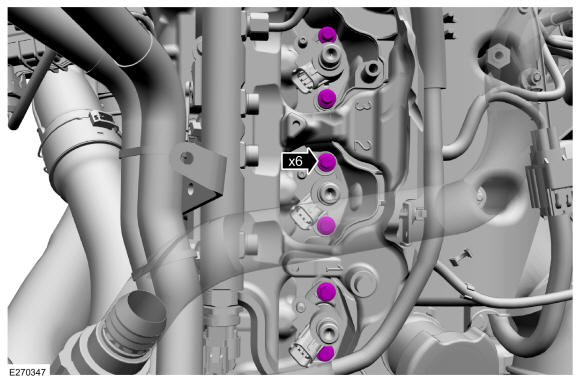

- Note the fuel injector cylinder location for installation, make sure to install it in the original location. Remove the fuel injector bolts.
-
NOTE: Make sure that the removal tool bolts are threaded all of the way into the engine cylinder head, failure to fully install the bolts will result in damage to the engine cylinder head.

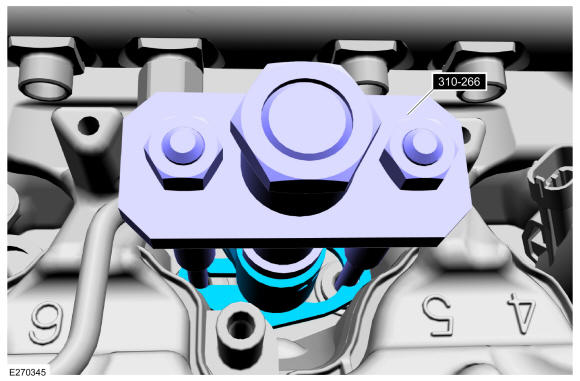

Using the special tool, Remover, Fuel Injector, remove the fuel injectors. Remove the special tool. Use Special Service Tool: 310-266 Remover, Fuel Injector.
- Remove and discard the sealing washer, the O-rings and the fuel injector hold down.
