3.0L Duratorq-TDCi - V6
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

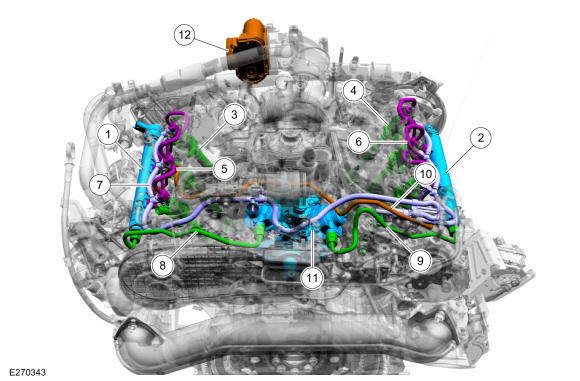

| Item | Description |
|---|---|
| 1 | Fuel rail LH |
| 2 | Fuel rail RH |
| 3 | Fuel injectors LH |
| 4 | Fuel injectors RH |
| 5 | Fuel injector supply tube LH |
| 6 | Fuel injector supply tube RH |
| 7 | Fuel injector fuel return line |
| 8 | Fuel rail supply tube LH |
| 9 | Fuel rail supply tube RH |
| 10 | Fuel rail balance tube |
| 11 | Fuel injection pump |
| 12 | Throttle body |
