Electric Cooling Fan: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

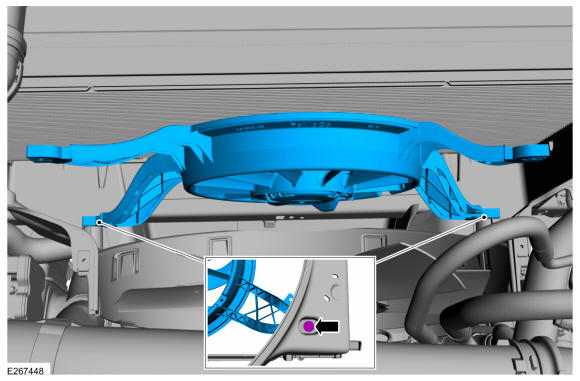

- Remove the upper cooling fan shroud. Refer to: Cooling Fan Upper Shroud .

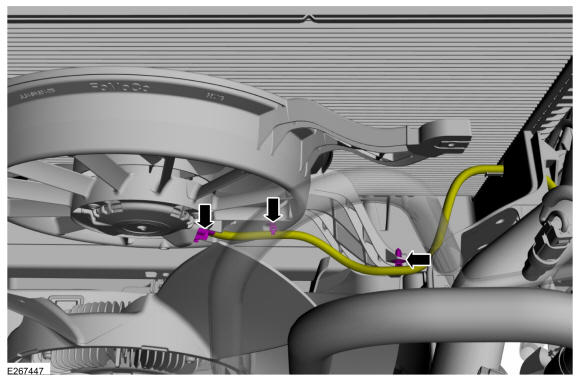

- Disconnect the electric connector and detach the wiring harness retainers.
- Remove the bolts and the electric cooling fan.
Torque: 62 lb.in (7 Nm)
