Coolant Pump: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Align the bolt holes with the bosses prior to insertion of the coolant pump and insert the pump straight into the coolant pump cavity. Do not rotate the coolant pump once installed into the coolant pump cavity or the O-ring seal can be damaged, causing the coolant pump to leak.

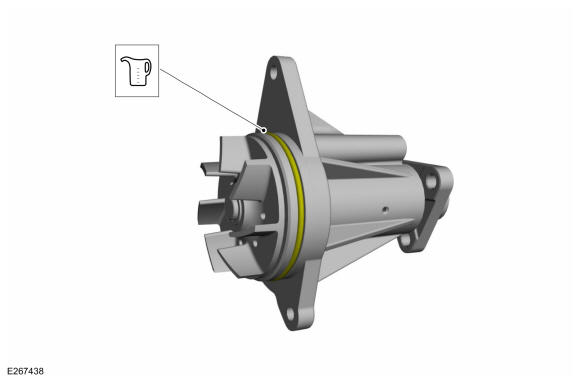

Install a new O-ring seal and lubricate it with clean engine coolant.
Material: Motorcraft® Orange Prediluted Antifreeze/Coolant / VC-3DIL-B (WSS-M97B44-D2)

Courtesy of FORD MOTOR COMPANY

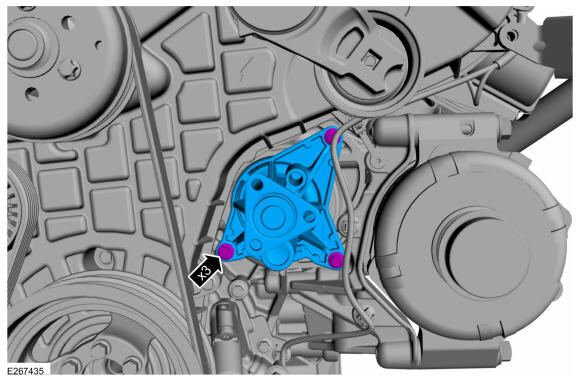

Install the coolant pump and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

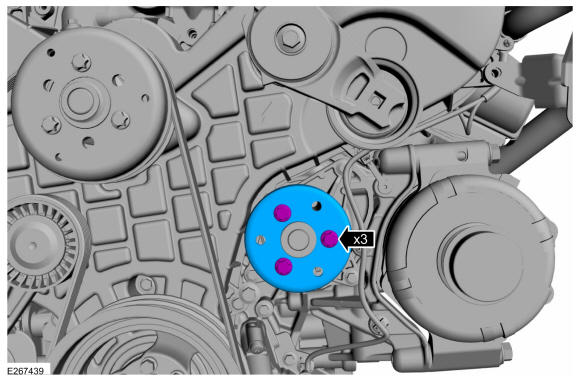

Position the coolant pump pulley and install the fasteners finger tight.

Courtesy of FORD MOTOR COMPANY

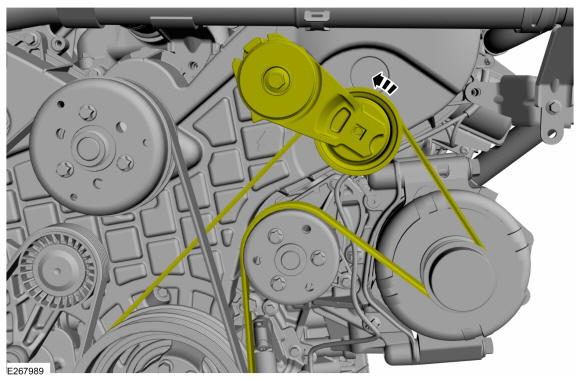

Position the accessory drive belt.

Courtesy of FORD MOTOR COMPANY

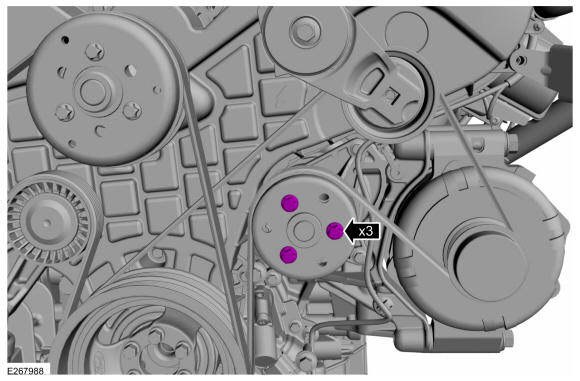

Tighten the coolant pump pulley bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the mechanical cooling fan. Refer to: Cooling Fan .
