Block Heater: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the LHF tire. Refer to: Wheel and Tire .
- Remove the LH fender splash shield. Refer to: Fender Splash Shield .
- Remove the generator. Refer to: Generator - 3.0L Power Stroke Diesel .

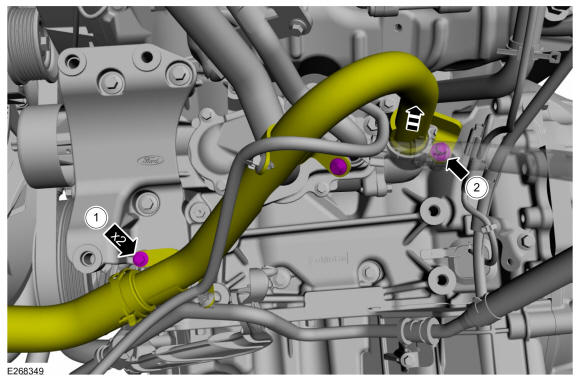

- Remove the bolts and position the coolant inlet tube aside.
Torque: 1: 71 lb.in (8 Nm) | 2: 18 lb.ft (25 Nm)
- Inspect the O-ring seal and replace if necessary.
-

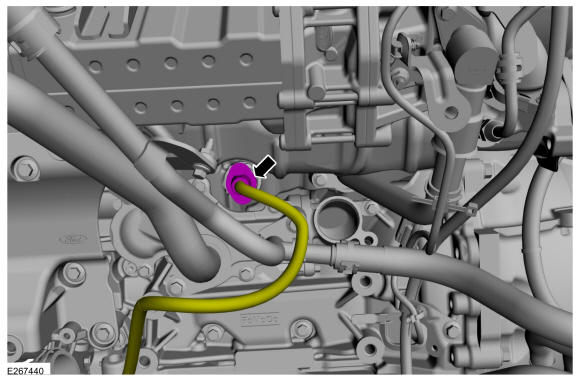

NOTE: Make sure the block heater wiring is routed and secured away from rotating or hot components.
Disconnect the block heater electrical connector.

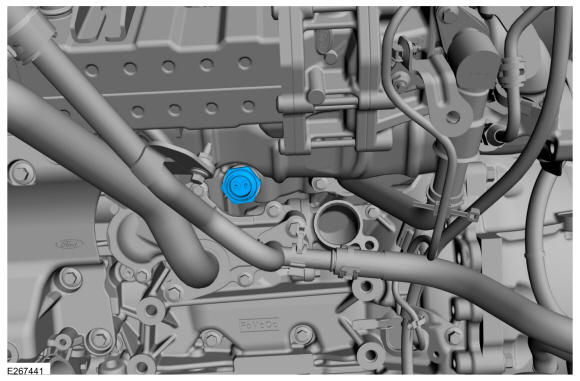

- Remove the block heater.
Torque: 53 lb.ft (72 Nm)

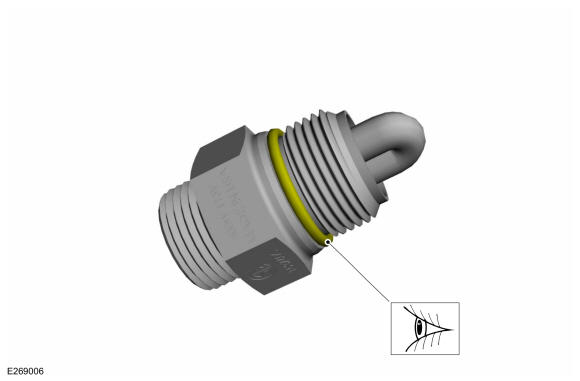

- Inspect the O-ring seal and replace if necessary.
