Cylinder Head: Disassembly

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface.
NOTE: The glow plugs protrude past the lower face of the cylinder head, any impact on the tip of the glow plug may result in glow plug damage.

LH cylinder head

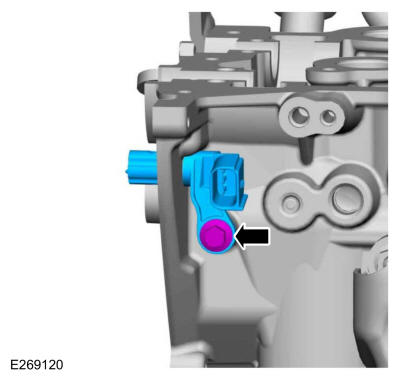

  1. Remove the bolt and the CMP sensor.
    GFD461863Courtesy of FORD MOTOR COMPANY

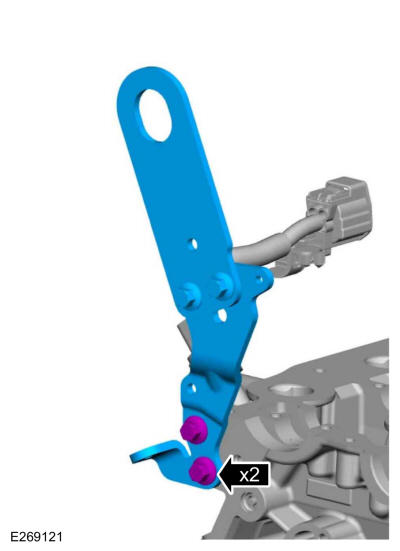

  2. Remove the bolts and the front lifting eye.
    GFD461864Courtesy of FORD MOTOR COMPANY

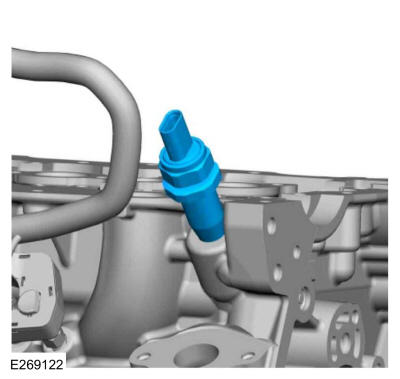

  3. Remove the EOP sensor.
    GFD461865Courtesy of FORD MOTOR COMPANY

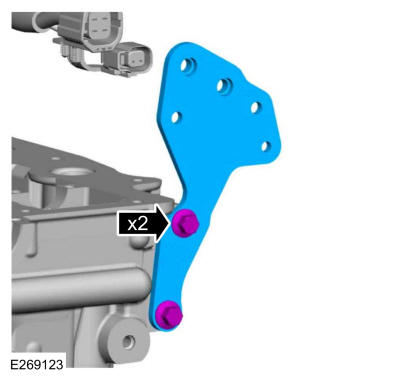

  4. Remove the bolts and the rear lifting eye.
    GFD461866Courtesy of FORD MOTOR COMPANY

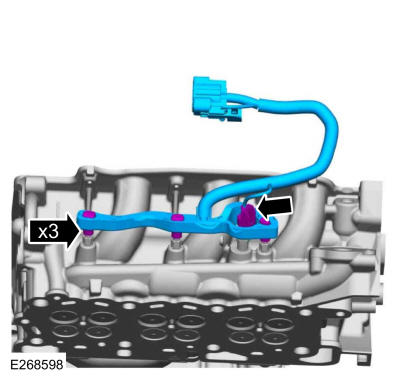

    • Disconnect the CHT electrical connector.

    • Disconnect and remove the LH glow plug harness.

    GFD461867Courtesy of FORD MOTOR COMPANY

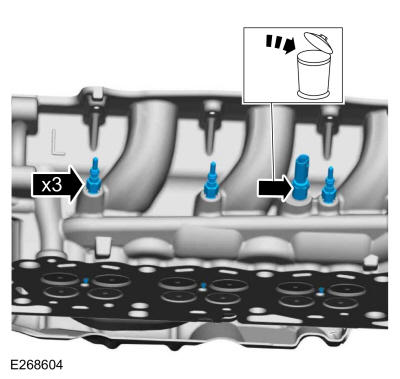

    • Remove and discard the CHT sensor.

    • Remove the LH glow plugs.

    GFD461868Courtesy of FORD MOTOR COMPANY

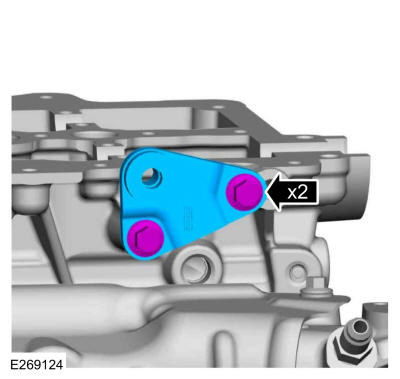

  5. Remove the bolts and the EGR cooler bracket.
    GFD461869Courtesy of FORD MOTOR COMPANY

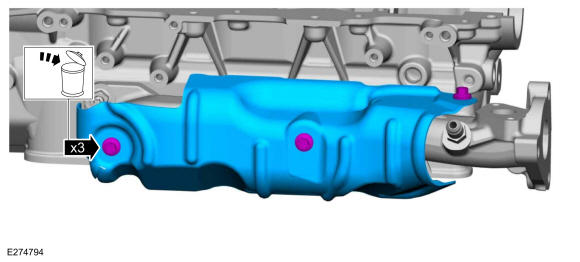

  6. Remove the bolts and the LH exhaust manifold heat shield. Discard the bolts.
    GFD461870Courtesy of FORD MOTOR COMPANY

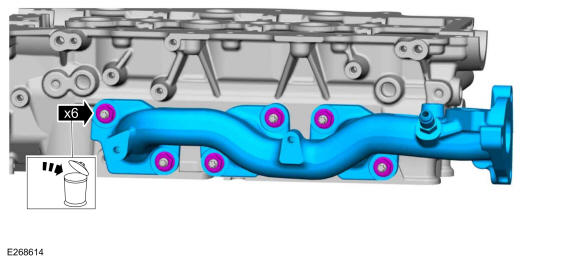

  7. Remove the nuts and the LH exhaust manifold. Discard the nuts.
    GFD461871Courtesy of FORD MOTOR COMPANY

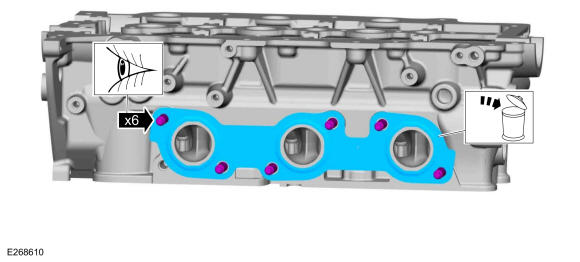

    • Remove and discard the LH exhaust manifold gasket.

    • Inspect the exhaust manifold studs. Replace as necessary.

    GFD461872Courtesy of FORD MOTOR COMPANY
  8. Clean and inspect the exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection .

    RH cylinder head

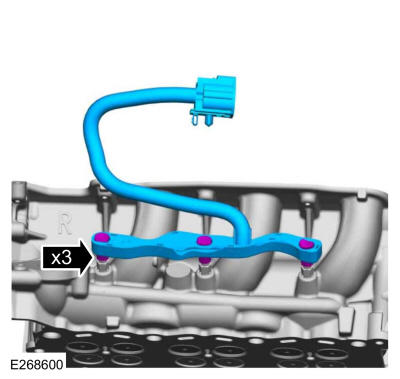

  9. Disconnect and remove the RH glow plug harness.
    GFD461873Courtesy of FORD MOTOR COMPANY

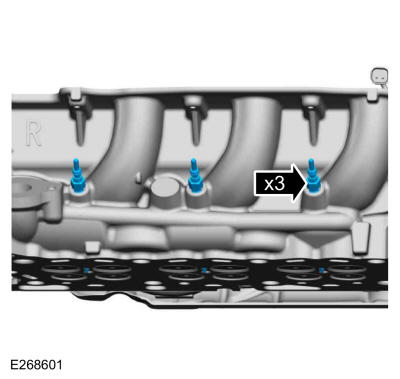

  10. Remove the RH glow plugs.
    GFD461874Courtesy of FORD MOTOR COMPANY

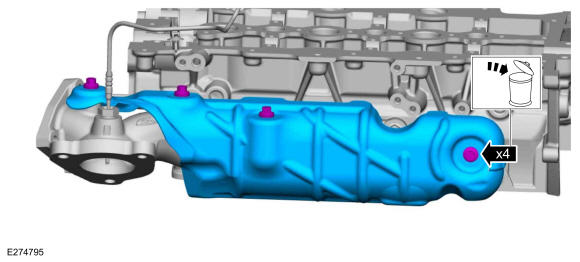

  11. Remove the bolts and the RH exhaust manifold heat shield. Discard the bolts.
    GFD461875Courtesy of FORD MOTOR COMPANY

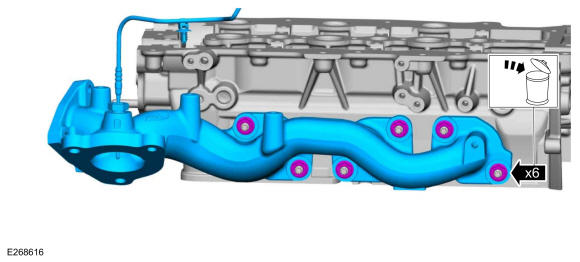

  12. Remove the nuts and the RH exhaust manifold. Discard the nuts.
    GFD461876Courtesy of FORD MOTOR COMPANY

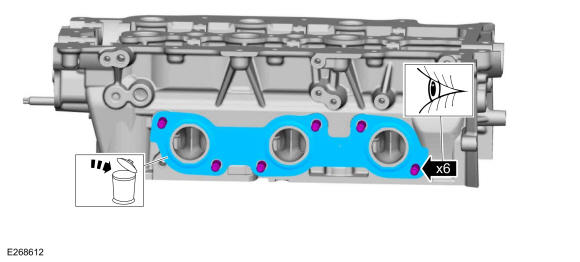

    • Remove and discard the RH exhaust manifold gasket.

    • Inspect the exhaust manifold studs. Replace as necessary.

    GFD461877Courtesy of FORD MOTOR COMPANY
  13. Clean and inspect the exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection .

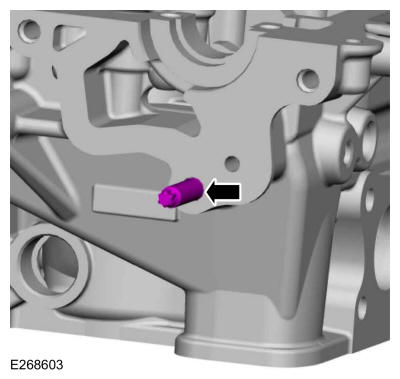

  14. Remove the vacuum pump stud.
    GFD461878Courtesy of FORD MOTOR COMPANY

    All cylinder heads

  15. NOTE: LH shown, RH similar.
    NOTE: If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into their original locations.
    NOTE: Use a small screwdriver and multi-purpose grease to remove the valve collets.

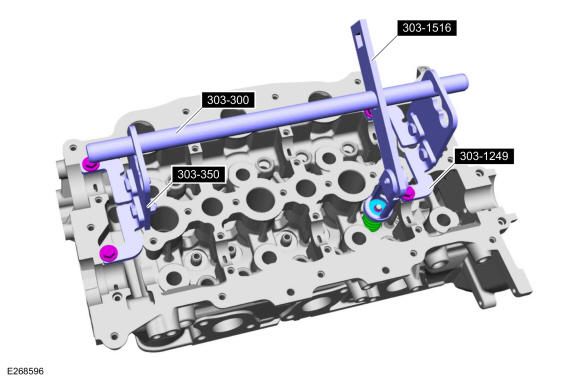

    Using the special tools, remove the valve collet, valve spring retainer and the valve spring. Use Special Service Tool : 303-300 (T87C-6565-A) Set, Valve Spring Compressor, 303-350 (T89P-6565-A) Compressor, Valve Spring, 303-1249 Valve Spring Compressor, 303-1516 Compressor, Valve Spring.

    Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

    GFD461879Courtesy of FORD MOTOR COMPANY

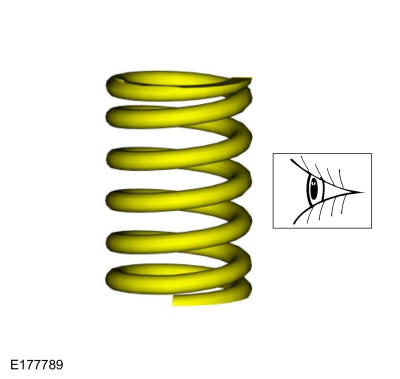

  16. Inspect and install new parts as necessary.
    GFD461880Courtesy of FORD MOTOR COMPANY

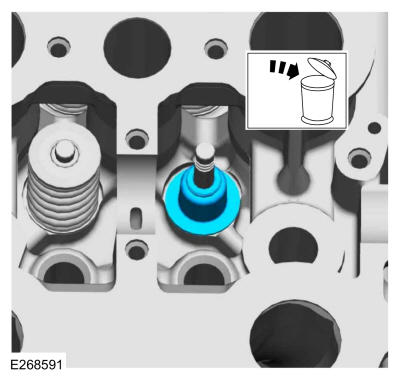

  17. NOTE: Use commercially available valve stem seal pliers.

    Remove and discard the valve stem seal.

    GFD461881Courtesy of FORD MOTOR COMPANY

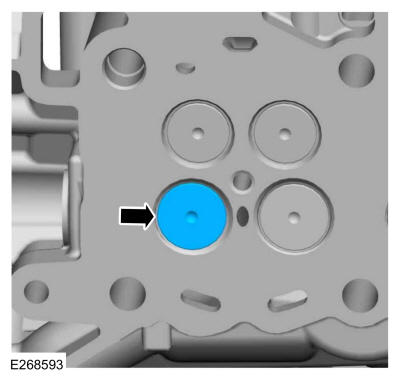

  18. Remove the valve from the cylinder head.
    GFD461882Courtesy of FORD MOTOR COMPANY
  19. Repeat the previous 3 steps for each valve.

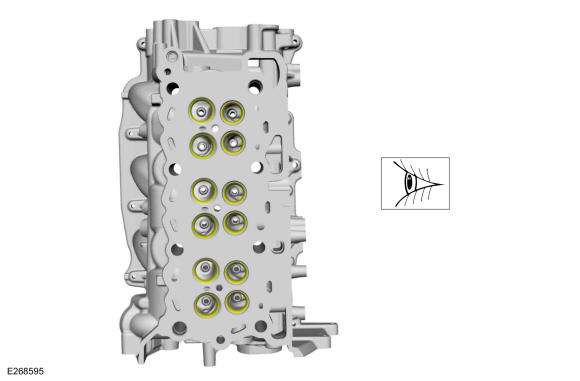

  20. Inspect the intake and exhaust valve guides and valve seats.
    GFD461883Courtesy of FORD MOTOR COMPANY
    1. Inspect the following valve areas: The end of the stem for grooves or scoring.
    2. The valve face and the edge for pits, grooves or scores.
    3. The valve head for signs of burning, erosion, warpage and cracking.
    4. The valve margin for wear.

    • Install new parts as necessary.

GFD461884Courtesy of FORD MOTOR COMPANY
