Valve Cover RH: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the following items:

    1. Remove the intake manifold. Refer to: Intake Manifold .
    2. Remove the fuel rail balance tube. Refer to: Fuel Rail Balance Tube .
    3. Remove the RH fuel rail supply tube. Refer to: Fuel Rail Supply Tube RH .
    4. Remove the RH fuel injector supply tube. Refer to: Fuel Injector Supply Tube RH .
    5. Remove the RH fuel injectors. Refer to: Fuel Injectors RH .
    6. Remove the RH fuel rail. Refer to: Fuel Rail RH .

  3. Disconnect the heater hoses and position aside.
    GFD461588Courtesy of FORD MOTOR COMPANY
  4. Remove the nut, the bolt and the turbocharger heat shield.
    GFD461589Courtesy of FORD MOTOR COMPANY
  5. Disconnect the brake booster vacuum pump tube and position aside. Refer to: QUICK RELEASE COUPLING .
    GFD461590Courtesy of FORD MOTOR COMPANY
  6. Disconnect the electrical connectors and the wire harness retainers. Position aside the wire harness.
    GFD461591Courtesy of FORD MOTOR COMPANY

    • Disconnect the fuel hoses and position aside.

    GFD461592Courtesy of FORD MOTOR COMPANY
  8. Remove the LH lower insulator.
    GFD461593Courtesy of FORD MOTOR COMPANY
  9. Remove the retainers and the engine appearance support bracket.
    GFD461594Courtesy of FORD MOTOR COMPANY

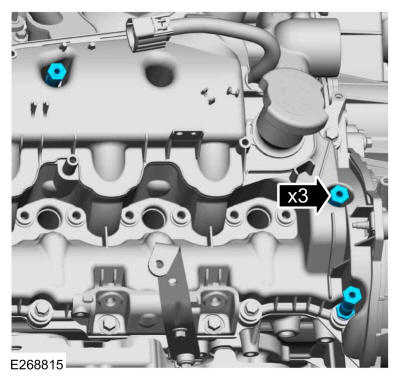

  10. Remove the RH engine cover stud assemblies.
    GFD461595Courtesy of FORD MOTOR COMPANY
  11. Remove the bolts and the heater hose support bracket.
    GFD461596Courtesy of FORD MOTOR COMPANY
  12. Remove the bolts and the RH fuel rail bracket.
    GFD461597Courtesy of FORD MOTOR COMPANY
  13. Remove the nuts and the RH fuel tube bracket.
    GFD461598Courtesy of FORD MOTOR COMPANY
  14. Remove the bolt for the CAC tube.
    GFD461558Courtesy of FORD MOTOR COMPANY
  15. Remove the nuts for the CAC tube bracket. Position aside the heater hoses.
    GFD461559Courtesy of FORD MOTOR COMPANY
  16. Loosen the retainers and position out the engine front cover.
    GFD461599Courtesy of FORD MOTOR COMPANY
  17. Disconnect the glow plug electrical connector and position aside.
    GFD461600Courtesy of FORD MOTOR COMPANY

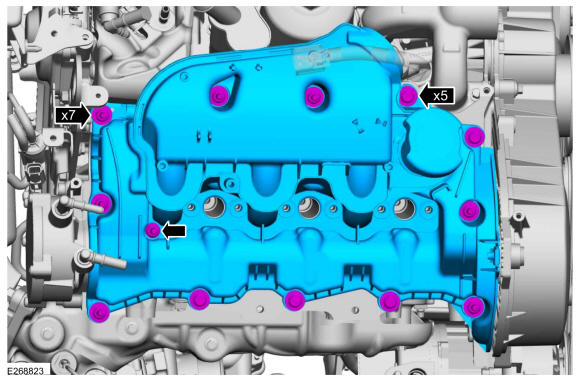

  18. NOTE: Mark the location of the fasteners prior to removing the valve cover.

    Remove the fasteners and the valve cover.

    GFD461601Courtesy of FORD MOTOR COMPANY
  19. Remove and discard the valve cover gasket.
    GFD461602Courtesy of FORD MOTOR COMPANY
  20. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
GFD461603Courtesy of FORD MOTOR COMPANY
