Valve Cover RH: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new valve cover gasket.
    GFD461604Courtesy of FORD MOTOR COMPANY
  2. NOTE: If the valve cover is not installed and the fasteners tightened within 10 minutes, the sealant must be removed and the sealing area cleaned.

    Apply an 6 mm dot of Motorcraft® High Performance Engine RTV Silicone to the locations shown below.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD461605Courtesy of FORD MOTOR COMPANY

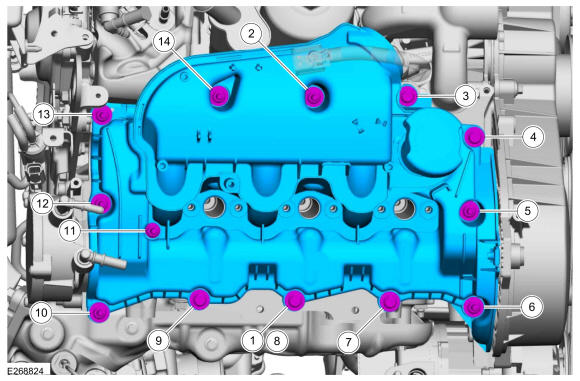

  3. Install the valve cover and tighten the fasteners in the sequence shown below.

    Torque: Stage 1: Tighten bolt number 1 to : 9 lb.in (1 Nm) | Stage 2: Tighten bolts 2 thru 14 to : 89 lb.in (10 Nm)

    Fig 1: RH Valve Cover Fasteners Tightening Sequence
    GFD461606Courtesy of FORD MOTOR COMPANY
  4. Connect the glow plug electrical connector and position aside.
    GFD461600Courtesy of FORD MOTOR COMPANY
  5. Position back the engine front cover and install the retainers.

    Torque: 89 lb.in (10 Nm)

    GFD461599Courtesy of FORD MOTOR COMPANY
  6. Position back the heater hoses. Install the nuts for the CAC tube bracket.

    Torque: 53 lb.in (6 Nm)

    GFD461559Courtesy of FORD MOTOR COMPANY
  7. Install the bolt for the CAC tube.

    Torque: 53 lb.in (6 Nm)

    GFD461558Courtesy of FORD MOTOR COMPANY
  8. Install the RH fuel tube bracket and the nuts.

    Torque: 89 lb.in (10 Nm)

    GFD461598Courtesy of FORD MOTOR COMPANY

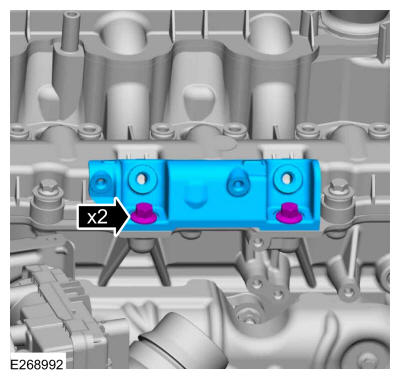

  9. Install the RH fuel rail bracket and the bolts.

    Torque: 17 lb.ft (23 Nm)

    GFD461597Courtesy of FORD MOTOR COMPANY

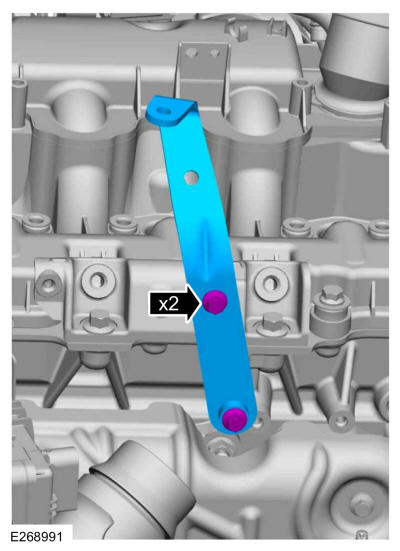

  10. Install the heater hose support bracket and the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD461596Courtesy of FORD MOTOR COMPANY

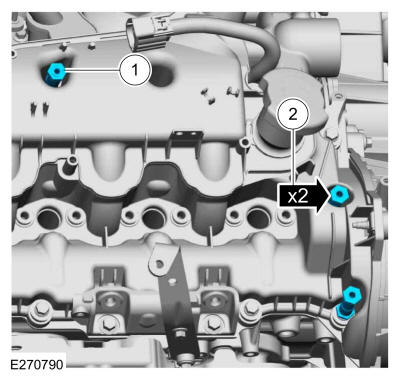

  11. Install the RH engine cover stud assemblies.

    Torque: 1 : 44 lb.in (5 Nm) 2 : 62 lb.in (7 Nm)

    GFD461607Courtesy of FORD MOTOR COMPANY

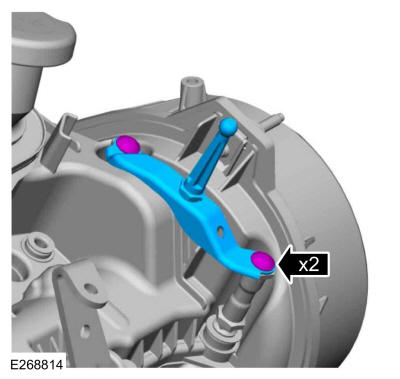

  12. Install the engine appearance support bracket and the retainers.

    Torque: 62 lb.in (7 Nm)

    GFD461594Courtesy of FORD MOTOR COMPANY

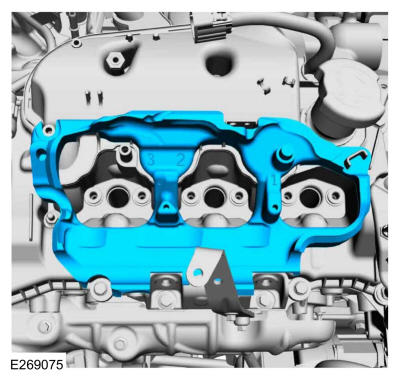

  13. Install the LH lower insulator.
    GFD461593Courtesy of FORD MOTOR COMPANY

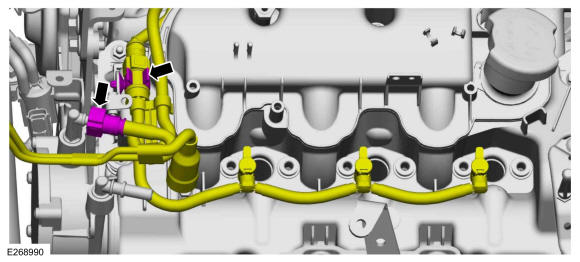

    • Position back the fuel hoses.

    GFD461592Courtesy of FORD MOTOR COMPANY
  14. Position back the wire harness. Connect the electrical connectors and the wire harness retainers.
    GFD461591Courtesy of FORD MOTOR COMPANY
  15. Position back and connect the brake booster vacuum pump tube. Refer to: QUICK RELEASE COUPLING .
    GFD461590Courtesy of FORD MOTOR COMPANY
  16. Install the turbocharger heat shield, the nut and the bolt.

    Torque: Nut : 53 lb.in (6 Nm) Bolt : 18 lb.ft (24 Nm)

    GFD461589Courtesy of FORD MOTOR COMPANY

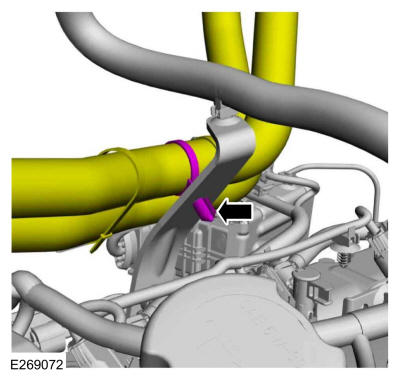

  17. Position back the heater hoses and connect the retainer.
    GFD461588Courtesy of FORD MOTOR COMPANY
  18. Install the following items:

    1. Install the RH fuel rail. Refer to: Fuel Rail RH .
    2. Install the RH fuel injectors. Refer to: Fuel Injectors RH .
    3. Install the RH fuel injector supply tube. Refer to: Fuel Injector Supply Tube RH .
    4. Install the RH fuel rail supply tube. Refer to: Fuel Rail Supply Tube RH .
    5. Install the fuel rail balance tube. Refer to: Fuel Rail Balance Tube .
    6. Install the intake manifold. Refer to: Intake Manifold .
