Valve Cover LH: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

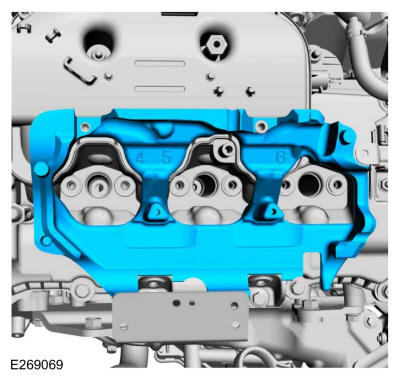

Install a new valve cover gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: If the valve cover is not installed and the fasteners tightened within 10 minutes, the sealant must be removed and the sealing area cleaned.

Apply an 6 mm dot of Motorcraft® High Performance Engine RTV Silicone to the locations shown below.

Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY

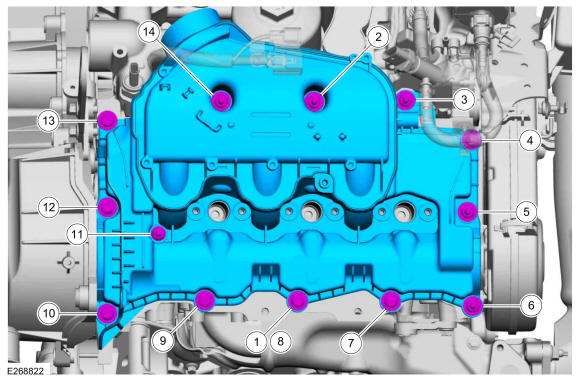

Install the valve cover and tighten the fasteners in the sequence shown below.
Torque: Stage 1: Tighten bolt number 1 to : 9 lb.in (1 Nm) | Stage 2: Tighten bolts 2 thru 14 to : 89 lb.in (10 Nm)

Fig 1: LH Valve Cover Fasteners Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Position back and connect the glow plug electrical connector.

Courtesy of FORD MOTOR COMPANY

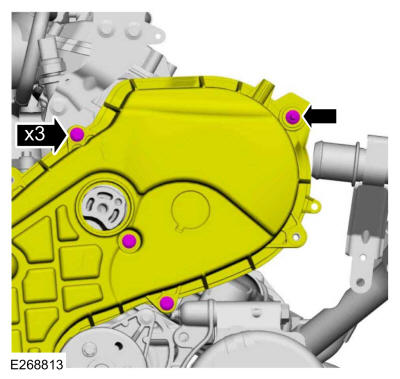

Position back the engine front cover and install the retainers.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

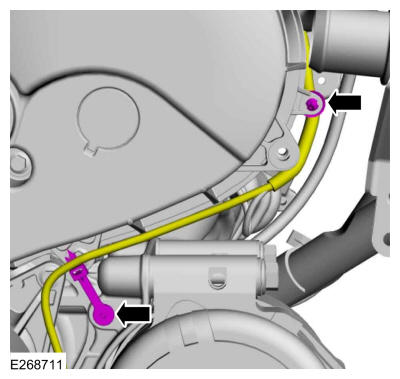

Position back the engine wiring and connect the retainers.

Courtesy of FORD MOTOR COMPANY

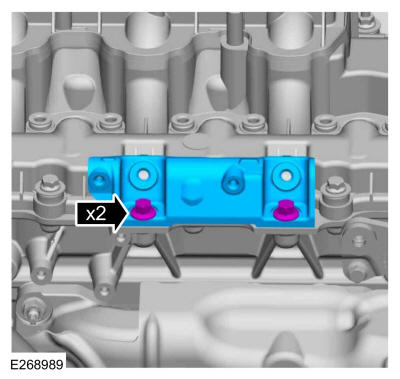

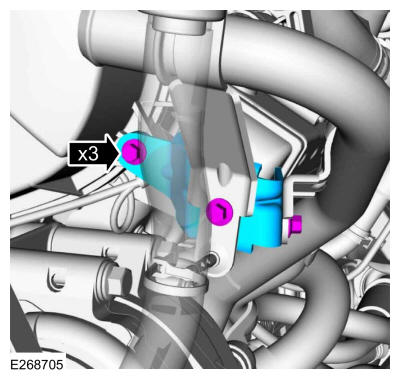

Install the coolant tube bracket and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

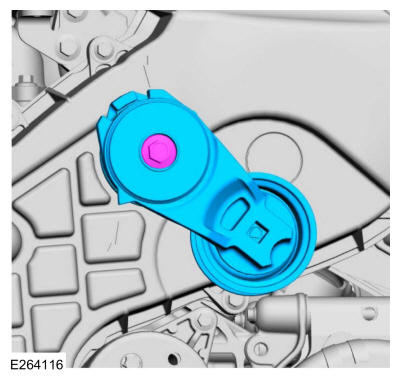

Install the accessory drive belt tensioner and the bolt.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

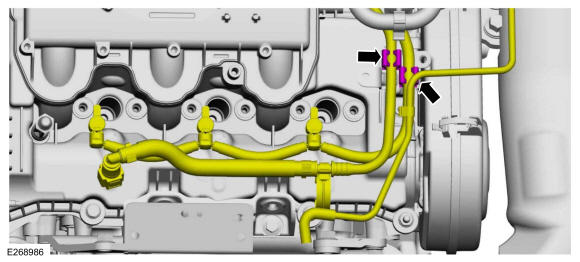

Install the LH fuel tube bracket and the nuts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the LH fuel rail bracket and the bolts.
Torque: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY

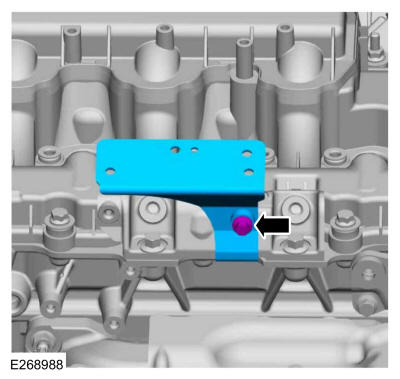

Install the wire harness bracket and the bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

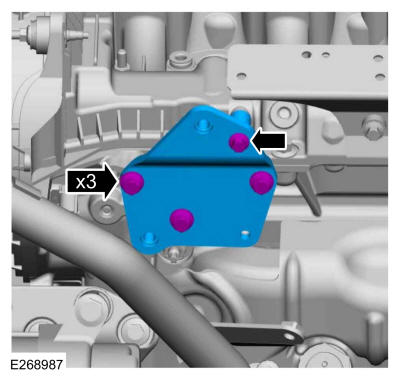

Install the EGR cooler mounting bracket and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

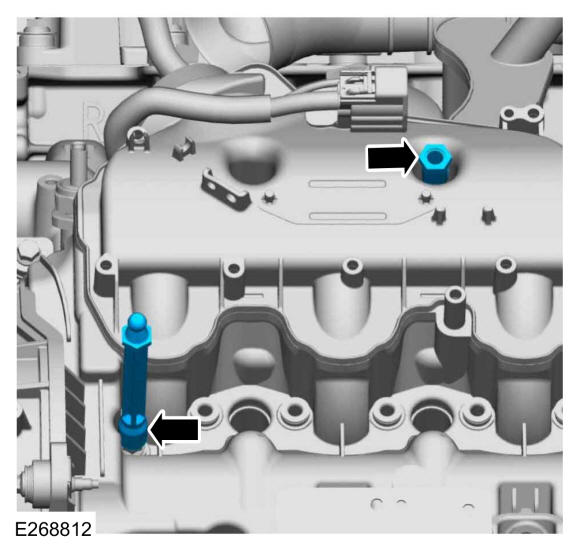

Install the LH engine cover stud assemblies.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
Install the LH lower insulator.

Courtesy of FORD MOTOR COMPANY
Position back and connect the fuel hoses

Courtesy of FORD MOTOR COMPANY

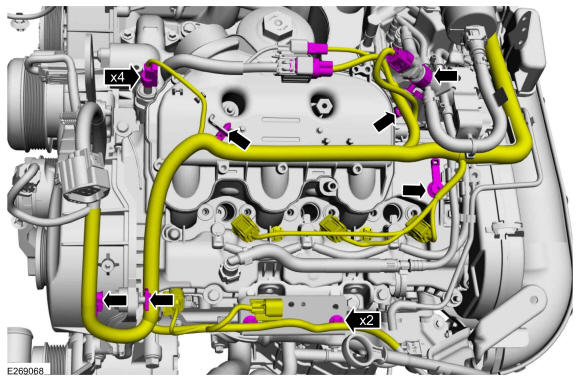

Position back the wire harness. Connect the electrical connectors and wire harness retainers.

Courtesy of FORD MOTOR COMPANY

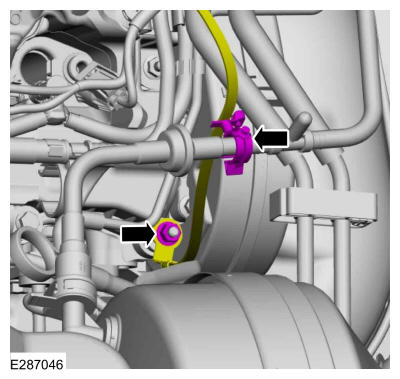

Position back the ground strap and install the nut. Connect the wire retainer,
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Install the accessory drive belt. Refer to: Accessory Drive Belt .
2. Install the LH fuel rail. Refer to: Fuel Rail LH .
3. Install the LH fuel injectors. Refer to: Fuel Injectors LH .
4. Install the LH fuel injector supply tube. Refer to: Fuel Injector Supply Tube LH .
5. Install the LH fuel rail supply tube. Refer to: Fuel Rail Supply Tube LH .
6. Install the fuel rail balance tube. Refer to: Fuel Rail Balance Tube .
7. Install the EGR system module. Refer to: Exhaust Gas Recirculation (EGR) System Module .
8. Install the intake manifold. Refer to: Intake Manifold .
